Part Number: AF40P03
Description: The TO-252 package is universally preferred for all commercial-industrial surface mount applications and suited for low...
- Table of contents:
AF40P03
-
Suppliers
DataSheet
General Description
AF40P03 General Description
The TO-252 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.
AF40P03 Maximum Ratings
| Symbol | Parameter | Rating | Units | |
| VDS | Drain-Source Voltage | -30 | V | |
| VGS | Gate-Source Voltage | ±20 | V | |
| ID | Continuous Drain Current (Note 1) | TA=25ºC | -30 | A |
| TA=100ºC | -18 | |||
| IDM | Pulsed Drain Current (Note 2) | -120 | A | |
| IS | Continuous Source Current (Diode Conduction) (Note 1) | 31.3 | A | |
| PD | Power Dissipation (Note 1) | TA=25ºC | 0.25 | W |
| TJ | Storage Temperature Range | -55 to 150 | ºC | |
| TSTG | Operating Junction Temperature Range | -55 to 150 | ºC | |
AF40P03 Features
-Lower On-Resistance
-Simple Drive Requirement
-Fast Switching Characteristic
-RoHS Compliant
-Pb Free Plating Product
-Simple Drive Requirement
-Fast Switching Characteristic
-RoHS Compliant
-Pb Free Plating Product

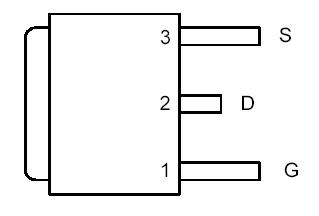

AF40P03 Connection Diagram
AF40P03
