AF70N02

Features: -Low Gate Charge-Simple Drive Requirement-Fast Switching-Pb Free Plating ProductPinoutSpecifications Symbol Parameter Rating Units VDS Drain-Source Voltage 25 V VGS Gate-Source Voltage ±20 V ID Continuous Drain Current (Note 1) TA=25ºC 66 A TA=70ºC...

product image

AF70N02 Picture
See larger image
SeekIC No. : 004278461 Detail

AF70N02: Features: -Low Gate Charge-Simple Drive Requirement-Fast Switching-Pb Free Plating ProductPinoutSpecifications Symbol Parameter Rating Units VDS Drain-Source Voltage 25 V VGS Gate-...

AF70N02 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AF70N02
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

-Low Gate Charge
-Simple Drive Requirement
-Fast Switching
-Pb Free Plating Product


Pinout

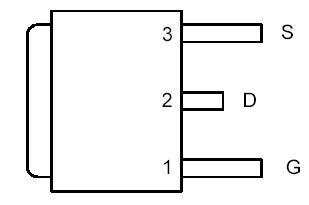

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage 25 V
VGS Gate-Source Voltage ±20 V
ID Continuous Drain Current (Note 1) TA=25ºC 66 A
TA=70ºC 42
IDM Pulsed Drain Current (Note 2) 210 A
IS Continuous Source Current (Diode Conduction) (Note 1) 66 A
PD Total Power Dissipation TA=25ºC 0.53 W
Linear Derating Factor
TJ Storage Temperature Range -55 to 150 ºC
TSTG Operating Junction Temperature Range -55 to 150 ºC



Description

The AF70N02 TO-252 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.
