Part Number: AF70N03









Description: The advanced power MOSFET provides the designer with the best combination of fast switching, ruggedized device design, ...


Urgent Purchase

AF70N03 General Description


The advanced power MOSFET provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The TO-252 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.

AF70N03 Maximum Ratings

Symbol Parameter Rating Units
VDS Drain-Source Voltage 30 V
VGS Gate-Source Voltage ±20 V
ID Continuous Drain Current (Note 1) TA=25ºC 60 A
TA=70ºC 43
IDM Pulsed Drain Current (Note 2) 195 A
IS Continuous Source Current (Diode Conduction) (Note 1) 53 A
PD Total Power Dissipation TA=25ºC 0.36 W
Linear Derating Factor
TJ Storage Temperature Range -55 to 150 ºC
TSTG Operating Junction Temperature Range -55 to 150 ºC

AF70N03 Features

-Low Gate Charge
-Simple Drive Requirement
-Fast Switching
-RoHS Compliant
-Pb Free Plating Product

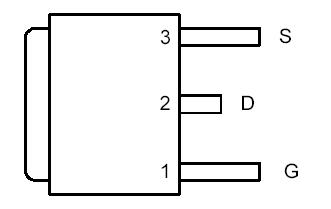

AF70N03 Connection Diagram

AF70N03 Connection Diagram

AF70N03 datasheet

AF70N03
PDF/DataSheet Download

Find AF70N03 Suppliers
