AF9435P

Features: -Low rDS(on) Provides Higher Efficiency and Extends Battery Life-Miniature SO-8 Surface Mount Package Saves Board Space-High power and current handling capability-Extended VGS range (±25) for battery pack applicationsPinoutSpecifications Symbol Parameter Rating Units VDS Drai...

product image

AF9435P Picture
See larger image
SeekIC No. : 004278467 Detail

AF9435P: Features: -Low rDS(on) Provides Higher Efficiency and Extends Battery Life-Miniature SO-8 Surface Mount Package Saves Board Space-High power and current handling capability-Extended VGS range (±25) ...

AF9435P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AF9435P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

-Low rDS(on) Provides Higher Efficiency and Extends Battery Life
-Miniature SO-8 Surface Mount Package Saves Board Space
-High power and current handling capability
-Extended VGS range (±25) for battery pack applications


Pinout

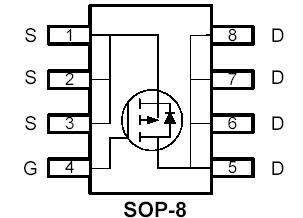

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage -30 V
VGS Gate-Source Voltage ±25 V
ID Continuous Drain Current (Note 1) TA=25ºC

±6.5

 A
TA=70ºC ±5.2
IDM Pulsed Drain Current (Note 2) ±30 A
IS Continuous Source Current (Diode Conduction) (Note 1) -1.6 A
PD Power Dissipation (Note 1) TA=25ºC 3.1 W
TA=70ºC 2.0
TJ, TSTG Operating Junction and Storage Temperature Range -55 to 150 ºC



Description

These miniature surface mount MOSFETs utilize High Cell Density process. Low rDS(on) assures minimal power loss and conserves energy, making AF9435P ideal for use in power management circuitry. Typical applications are PWMDC-DC converters, power management in portable and battery-powered products such as computers, printers, battery charger, telecommunication power system, and telephones power system.
