Product Details

Description



Features:

-Lower On-Resistance
-Simple Drive Requirement
-Fast Switching Characteristic
-RoHS Compliant
-Pb Free Plating Product


Pinout

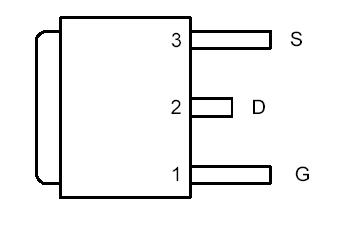

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage -60 V
VGS Gate-Source Voltage ±25 V
ID Continuous Drain Current (Note 1) TA=25ºC -10 A
TA=70ºC -6
IDM Pulsed Drain Current (Note 2) 45 A
PD Total Power Dissipation TA=25ºC 28 W
Linear Derating Factor   0.23
TJ Storage Temperature Range -55 to 150 ºC
TSTG Operating Junction Temperature Range -55 to 150 ºC



Description

The TO-252 package is universally preferred for all commercial-industrial surface mount applications of AF9478P and suited for low voltage applications such as DC/DC converters.
