General Description
AG103 General Description
The AG103 is a general-purpose gain block that offers good dynamic range and low noise figure in a low-cost surfacemount package. The combination of high OIP3 and tight gain variation window makes it attractive for a multitude of applications. The device combines dependable performance with superb quality to maintain MTTF values exceeding 1000 years at mounting temperatures of +85°C and is available in both the standard SOT-89 package and the environmentally-friendly lead-free/green/RoHS-compliant and green SOT-89 package. All devices are 100% RF & DC tested.
The AG103 uses a high reliability GaAs MMIC technology and only requires DC-blocking and bypass capacitors, and an inductive RF choke for operation. Internal matching provides a 50 ohm input / output impedance minimizing the number of required external components.
The AG103 GaAs MMIC amplifier is well suited for wireless infrastructure such as NMT-450, homeland security, and 2nd generation mobile infrastructure utilizing the cellular band. In addition, the amplifier can be used for applications in various IF frequency bands.
AG103 Maximum Ratings
Operating Case Temperature . . . . . . . . . . . -40 to +85 °C
Storage Temperature . . . . . . . . . . . . . . . . . -55 to +150 °C
DC Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 V
RF Input Power (continuous) . . . . . . . . . . . . . . . . . +10 dBm
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . +220° C
Storage Temperature . . . . . . . . . . . . . . . . . -55 to +150 °C
DC Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 V
RF Input Power (continuous) . . . . . . . . . . . . . . . . . +10 dBm
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . +220° C
AG103 Features
• 50 870 MHz
• 13 dB Gain
• 3 dB Noise Figure
• >+36 dBm OIP3
• +20 dBm P1dB
• Single +5 Bias Supply
• Internally matched to 50 Ω
• Lead-free/Green/RoHScompliant SOT-89 Package
• MTTF > 1000 years
• 13 dB Gain
• 3 dB Noise Figure
• >+36 dBm OIP3
• +20 dBm P1dB
• Single +5 Bias Supply
• Internally matched to 50 Ω
• Lead-free/Green/RoHScompliant SOT-89 Package
• MTTF > 1000 years
AG103 Typical Application
• Mobile Infrastructure
• CATV / DBS
• Defense / Homeland Security
• NMT-450 Infrastructure
• CATV / DBS
• Defense / Homeland Security
• NMT-450 Infrastructure

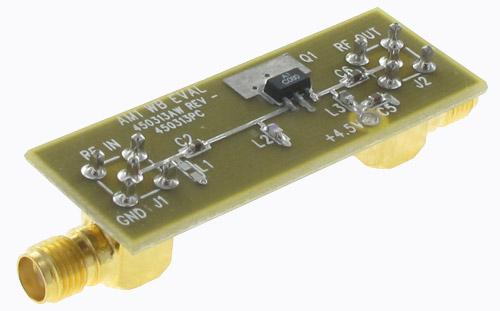

AG103 Connection Diagram
AG103
