Features:

VDS(MAX) = 30V
ID(MAX)(a) = 44 A @ 25°C
 IAPP(MAX) = 17A in typical computer application
Low Gate Charge
Low RDS(ON) :
      13.5 m=(max), 9.5 m=(typ) @VGS = 10V
      20 m=(max), 14 m=(typ) @VGS = 4.5V


Application

 DC-DC converters for CPU's
  High Current Load Switch


Pinout

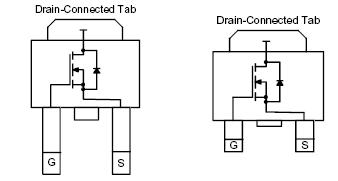

Connection Diagram


Specifications

Symbol Description
Value
Units
VDS Drain-Source Voltage
30
V
VGS Gate-Source Voltage
±20
ID Continuous Drain Current @ TJ=150°C (a)
±44
A
IDM Pulsed Drain Current (a)
±52
IS Continuous Source Current (Source-Drain Diode) (a)
23
PD Maximum Power Dissipation (a) TA = 25°C
39
W
TA = 70°C
25
TJ, TSTG Operating Junction and Storage Temperature Range
-55 to 150
°C



Description

Utilizing Analogic Tech's state-of-the-art TrenchDMOS® process, the AHK6030L sets a new standard in current handling capability and efficiency for surface mount power MOSFETs.Gate charge and RDS(ON) have been optimized and package inductance minimized to provide high efficiency for DC-DC converters
