AIC1084

Features: Dropout Voltage 1.5V at 5A Output Current. Fast Transient Response. Extremely Tight Line and Load Regulation. Current Limiting and Thermal Protection. Adjustable Output Voltage or Fixed 1.5V, 1.8V, 2.5V, 3.3V. Standard 3-Pin Power Packages. ~Application Mother Board I/O ...

product image

AIC1084 Picture
See larger image
SeekIC No. : 004278983 Detail

AIC1084: Features: Dropout Voltage 1.5V at 5A Output Current. Fast Transient Response. Extremely Tight Line and Load Regulation. Current Limiting and Thermal Protection. Adjustable Output Voltage...

AIC1084 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AIC1084
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

    • Dropout Voltage 1.5V at 5A Output Current.
    • Fast Transient Response.
    • Extremely Tight Line and Load Regulation.
    • Current Limiting and Thermal Protection.
    • Adjustable Output Voltage or Fixed 1.5V, 1.8V, 2.5V, 3.3V.
    • Standard 3-Pin Power Packages.
  • ~





Application

  • Mother Board I/O Power Supplies.
  • Microprocessor Power Supplies.
  • High Current Regulator.
  • Post Regulator for Switching Supply.
  • ~

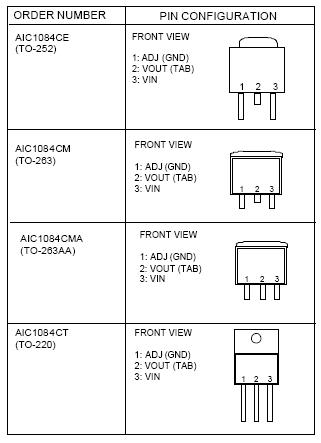

    • Pinout

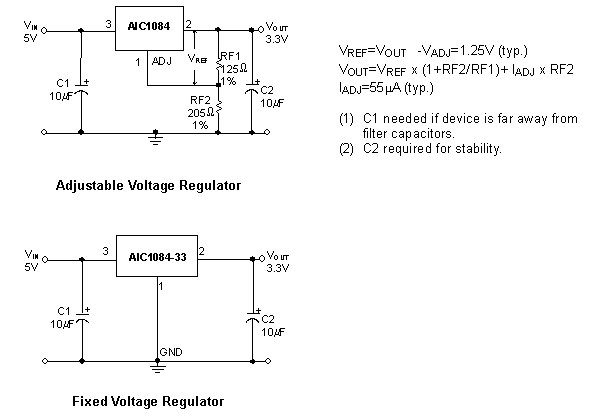

    Connection Diagram

    Connection Diagram




    Specifications

    VIN pin to ADJ/GND pin .............................................................................................7V
    Operating Junction Temperature Range ...................................................0°C~ 125°C
    Storage Temperature Range................................................................- 65°C ~ 150°C
    Thermal Resistance Junction to Case TO-252...................................................15°C/W
    TO-263, TO263AA, TO-220......................6°C /W
    Thermal Resistance Junction to Ambient TO-252............................................100°C/W
    (Assume no ambient airflow, no heatsink) TO-263..........................................60°C /W
    TO-263AA.......................................60°C /W
    TO-220......................................... 50°C /W
    Lead Temperature (Soldering) 10 sec. ...............................................................260°C




    Description

    The AIC1084 is a low dropout three terminal regulator with 5A output current capability. The output voltage is adjustable with the use of a resistor divider or fixed 1.5V, 1.8V, 2.5V and 3.3V. Dropout voltage is guaranteed to be at maximum of 1.5V with the maximum output current. Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Current limit and thermal protection of AIC1084 provide protection against any overload condition that would create excessive junction temperatures.
