Part Number: AIC1086



MFG: aic

Package Cooled: to-220

D/C: 05+

Description: The AIC1086 is a low dropout three terminal regulator with 1.5A output current capability. The output ...


Urgent Purchase

AIC1086 General Description


The AIC1086 is a low dropout three terminal regulator with 1.5A output current capability. The output voltage is adjustable with the use of a resistor divider or fixed 2.85V, 3.3V, 5V. Dropout is guaranteed at a maximum of 1.5V at maximum output current. Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Internal current and thermal limiting provides protection against any overload condition that would create excessive junction temperatures.

AIC1086 Maximum Ratings

VIN pin to ADJ/GND pin ...............................................................................7V
Operating Junction Temperature Range ................................... 0°C ~ 125°C
Storage Temperature Range ................................................ - 65°C ~ 150°C
Thermal Resistance (Junction to Case) TO-220....................................3°C /W
                                                             TO-263 ...................................3°C /W
                                                             SOT-223................................15°C /W
Lead Temperature (Soldering) 10 sec. .................................................260°C

AIC1086 Features

Dropout Voltage 1.3V at 1.5A Output Current.
Fast Transient Response.
Line Regulation typically at 0.015%.
Load Regulation typically at 0.1%.
Internal Thermal and Current Limiting.
Adjustable Output Voltage or Fixed 2.85V, 3.3V,5V.
Standard 3-Pin Power Packages.

AIC1086 Typical Application

Post Regulator for Switching Supply.
Battery Chargers.
Constant-Current Regulators.
PC Add-On Card.

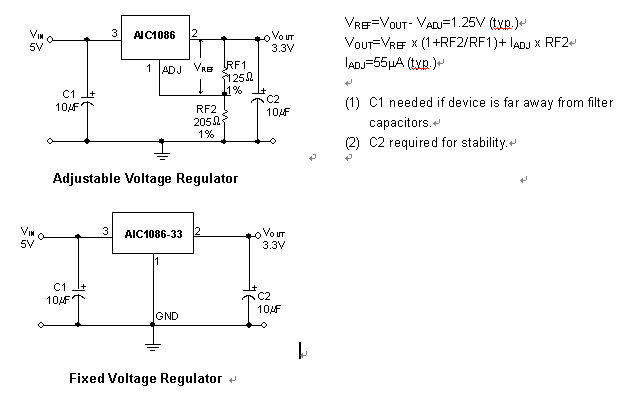

AIC1086 Connection Diagram

AIC1086 Connection Diagram
