Product Details

Description



Features:

·  Integral Driver ±5 V Supply Voltages
·  Low Insertion Loss, Reflective
·  7 Lead Hermetic Package
·  Capable of Meeting MIL-STD
   Requirements8

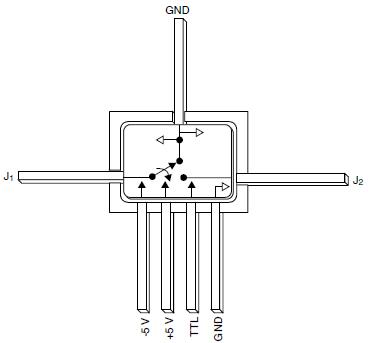

Pinout

Connection Diagram


Specifications

Characteristic
Value
RF Input Power (RF In)
0.5 W > 500 MHz
0.1 W @ 50 MHz
Bias Voltage (VB)
+7.0 V, -7.0 V
Control Voltage (VC)
-0.2 V, +7.0 V
Operating Temperature (TOP)
-40 to +90
Storage Temperature (TST)
-65 to +150
Thermal Resistance (JC)
30/W



Description

The AK006L1-01 is a GaAs IC FET SPST low loss switch with integral driver. This device is useful as a modulator and a switch in high reliability and commercial applications. The integral driver simplifies the external driver circuit, thus saving PC board space and reducing component count.The AK006L1-10 is the gullwing version of this device for surface mount applications.
