Part Number: AK006M2-10









Description: The AK006M2-01 is a GaAs IC FET SPDT non-reflective switch with integral driver.These devices are usef...


Urgent Purchase

AK006M2-10 General Description


The AK006M2-01 is a GaAs IC FET SPDT non-reflective switch with integral driver.These devices are useful in high reliability and commercial applications. The integral driver simplifies the external driver circuit, thus saving PC board space and reducing component count.The AK006M2-10 is the gullwing version of this device for surface mount applications.

AK006M2-10 Maximum Ratings

Characteristic
Value
RF Input Power (RF In)
0.5 W > 500 MHz
0.1 W @ 50 MHz
Bias Voltage (VB)
+7.0 V, -7.0 V
Control Voltage (VC)
-0.2 V, +7.0 V
Operating Temperature (TOP)
-40 to +90
Storage Temperature (TST)
-65 to +150
Thermal Resistance (JC)
30/W

AK006M2-10 Features

·  Integral Driver ±5 V Supply Voltages
·  Non-Reflective, High Isolation
·  7 Lead Hermetic Package
·  Capable of Meeting MIL-STD
   Requirements7

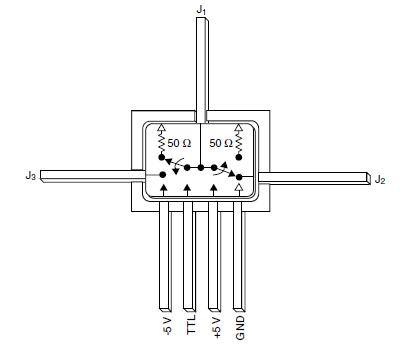

AK006M2-10 Connection Diagram

AK006M2-10 Connection Diagram

AK006M2-10 datasheet

AK006M2-10
PDF/DataSheet Download
