Features:

Sampling Rate up to 192kHz
Support AES3, IEC60958, S/PDIF & EIAJ CP1201 professional and consumer formats
Generates CRCC codes and parity bits
On-chip RS422 line driver
16-byte on-chip buffer memory for Channel Status and User bits
Supports synchronous/asynchronous access to Channel Status and User bits
Supports multiple clock frequencies: 128fs, 256fs, 384fs and 512fs
Supports Left/Right justified and I2S audio formats
Easy to use 4 wire, Serial Host Interface
Audio Routing Mode (Transparent Mode)
Power supply: 4.75 to 5.25V
TTL level I/F
Small Package: 24pin VSOP
Temperature range of - 40 to 85 °C
Sampling Rate up to 192kHz
Support AES3, IEC60958, S/PDIF & EIAJ CP1201 professional and consumer formats
Generates CRCC codes and parity bits
On-chip RS422 line driver
16-byte on-chip buffer memory for Channel Status and User bits
Supports synchronous/asynchronous access to Channel Status and User bits
Supports multiple clock frequencies: 128fs, 256fs, 384fs and 512fs
Supports Left/Right justified and I2S audio formats
Easy to use 4 wire, Serial Host Interface
Audio Routing Mode (Transparent Mode)
Power supply: 4.75 to 5.25V
TTL level I/F
Small Package: 24pin VSOP
Temperature range of - 40 to 85 °C



Pinout

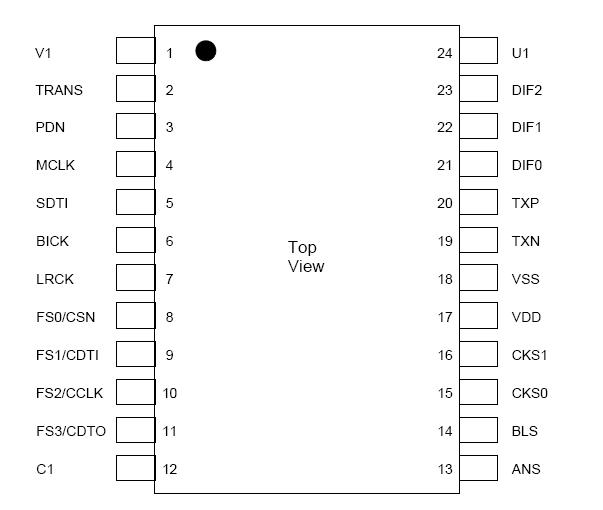

  Connection Diagram


Specifications

(VSS=0V; Note 1)
Parameter
Symbol
min
max
Units
Power Supply

VDD

-0.3

6.0

V
Input Current (any pins except for supplies)
IIN
-
±10
mA
Digital Input Voltage
VIND
-0.3
VDD+0.3
V
Ambient Temperature (Powered applied)
Ta
-40
85
°C
Storage Temperature
Tstg
-65
150
°C

Notes:1. All voltages with respect to ground.


Description

The AK4103A is a digital audio transmitter (DIT) which supports data rate up to 192kHz sample rate operation. It supports AES3, IEC60958, S/PDIF & EIAJ CP1201 interface standards. The AK4103A accepts audio data, auxiliary information data and etc, which is then biphase-encoded and driven on to a cable. The audio serial port supports eight formats.
