AK4113

Features:

􀂆 AES/EBU, IEC60958, S/PDIF, EIAJ CP1201 Compatible
􀂆 Low Jitter Analog PLL
􀂆 PLL Lock Range: 8k ∼ 216kHz
􀂆 Clock source: PLL or X'tal
􀂆 6-channel Receiver Input and 1-channel Transmission Output (Through output)
􀂆 Auxiliary Digital Input
􀂆 De-emphasis for 32kHz, 44.1kHz and 48kHz
􀂆 Detection Functions
     - Non-PCM Bit Stream Detection
     - DTS-CD Bit Stream Detection
     - Sampling Frequency Detection
       (8kHz, 11.025kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz,
       64kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz)
     - Unlock & Parity Error Detection
     - Validity Detection
     - DAT Start ID Detection
􀂆 Up to 24bit Audio Data Format
􀂆 Audio Interface: Master or Slave Mode
􀂆 40-bit Channel Status Buffer
􀂆 Burst Preamble bit Pc and Pd Buffer for Non-PCM bit stream
􀂆 Q-subcode Buffer for CD bit stream
􀂆 Serial P Interface: I²C (max. 400kHz) or 4-wire
􀂆 Two Master Clock Outputs: 64fs/128fs/256fs/512fs
􀂆 Operating Voltage: 2.7 to 3.6V with 5V Logic Tolerance
􀂆 Small Package: 30pin VSOP
􀂆 Ta: - 40 ∼ 85°C

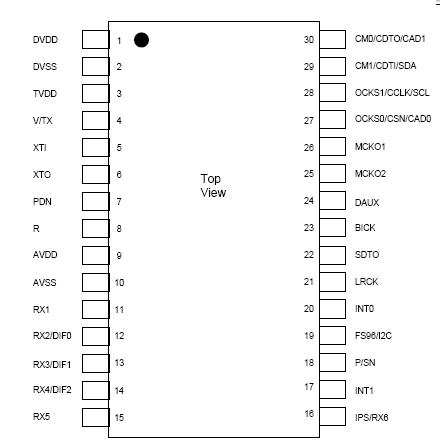

Pinout




Specifications

(AVSS, DVSS=0V; Note 2)

Parameter		Symbol	min	max	Units
Power Supply	Analog Digital Input Buffer |AVSS-DVSS| (Note 3)	AVDD DVDD TVDD GND	-0.3 -0.3 -0.3 -	4.6 4.6 6.0 0.3	V V V V
Input Current (any pins except for supplies)		IIN	-	±10	mA
Input Voltage		VIN	-0.3	TVDD+0.3	V
Ambient Temperature (Powered applied)		Ta	-40	85	°C
Storage Temperature		Tstg	-65	150	°C

Note 2. All voltage with respect to ground.
Note 3. AVSS and DVSS must be connected to the same ground.


Description

The AK4113 is a 24-bit stereo digital audio receiver that supports sampling rates up to 216kHz. The channel status bits decoder supports both consumer and professional modes. The AK4113 automatically detects non-PCM bit streams such as Dolby Digital, MPEG etc. When combined with the multi channel codec (AK4626 or AK4628), the two chips provide a system solution for Dolby Digital applications.Control of AK4113 is achieved though a P or pin strapping (parallel mode). It is packaged in a space-saving 30-pin VSOP.
* Dolby Digital is a trademark of Dolby Laboratories.
