AK4366

Features: Multi-bit DS DAC Sampling Rate: 8kHz~48kHz 64x Oversampling On chip perfect filtering 8 times FIR interpolator - Passband: 20kHz - Passband Ripple: ±0.02dB - Stopband Attenuation: 54dB Digital De-emphasis Filter: 32kHz, 44.1kHz and 48kHz System Clock: 256fs/384fs/512fs - Input Level: CM...

product image

AK4366 Picture
See larger image
SeekIC No. : 004279308 Detail

AK4366: Features: Multi-bit DS DAC Sampling Rate: 8kHz~48kHz 64x Oversampling On chip perfect filtering 8 times FIR interpolator - Passband: 20kHz - Passband Ripple: ±0.02dB - Stopband Attenuation: 54dB Di...

AK4366 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AK4366
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Multi-bit DS DAC
Sampling Rate: 8kHz~48kHz
64x Oversampling
On chip perfect filtering 8 times FIR interpolator
   - Passband: 20kHz
   - Passband Ripple: ±0.02dB
   - Stopband Attenuation: 54dB
Digital De-emphasis Filter: 32kHz, 44.1kHz and 48kHz
System Clock: 256fs/384fs/512fs
   - Input Level: CMOS or 0.4Vpp Analog Input
Audio I/F Format: MSB First, 2's Compliment
   - I2S, 24bit MSB justified, 24bit/20bit/16bit LSB justified
P Interface: 3-wire
Bass Boost Function
Headphone Amplifier
   - Output Power: 50mW x 2ch @16W, 3.3V
   - S/N: 92dB@2.4V
   - Click Noise Free at Power-ON/OFF and Mute
Power Supply: 2,2V ~ 3.6V
Power Supply Current: 2.6mA@2.4V (@HP-AMP no-input)
Ta: -40 ~ 85°C
Small Package: 16pin TSSOP

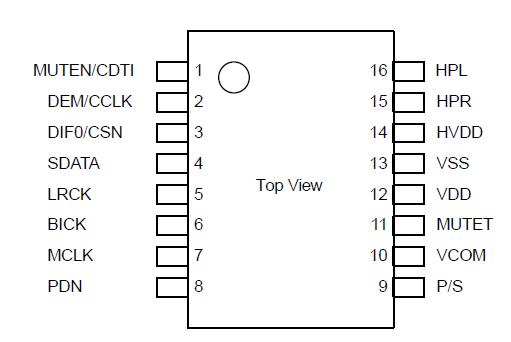

Pinout

Connection Diagram


Specifications

(VSS=0V; Note 1)
Parameter
Symbol
min
max
Units
Power Supplies Analog, Digital
HP-AMP

VDD
HVDD
-0.3
-0.3
4.6
4.6
V
V
Input Current, Any Pin Except Supplies
IIN
-
±10
mA
Input Voltage
VIN
-0.3
VDD+0.3 or 4.6
V
Ambient Temperature (powered applied)
Ta
-40
85
°C
Storage Temperature
Tstg
-65
150
°C
Note 1. All voltages with respect to ground.


Description

The AK4366 is 24bit DAC with built-in Headphone Amplifier. The integrated headphone amplifier features "click-free" power-on/off, a mute control and delivers 50mW of power at 16W. The product is housed in a 16pin TSSOP package, making it suitable for portable applications.
