Product Details

Description



Features:

Sampling Rate up to 96kHz
Full-differential inputs
S/(N+D): 97dB
DR, S/N: 104dB
Linear phase digital filter
· Pass band: 0 ~ 22kHz(@fs=48kHz)
· Pass band ripple: ±0.005dB
· Stop band attenuation: 80dB
Digital HPF for DC-offset cancel
Master clock: 256fs/384fs
Power supply: 5V±5%
Small package: 24pinVSOP

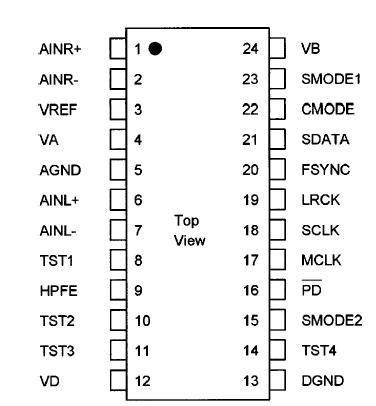

Pinout

Connection Diagram

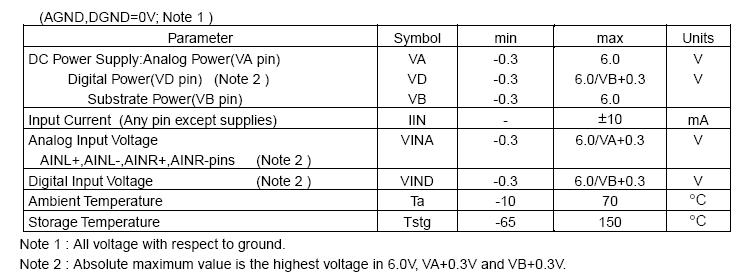

Specifications

Connection Diagram


Description

The AK5352 is a 20-bit, 96kHz sampling rate for DAT and DVD, 64x oversampling rate(64fs), 2-channel A/D converter for stereo digital systems. The DS modulator in the AK5352 uses the new developed Enhanced Dual bit architecture. This new architecture achieves the wider dynamic range, while keeping much the same superior distortion characteristics as the conventional Single bit way.
The AK5352 is available in a small 24pin VSOP package which will reduce your system space.
