Part Number: AK5365
Description: AK5365 is a high-performance 24-bit, 96kHz sampling ADC for consumer audio and digital recording applications. Thanks t...
- Table of contents:
AK5365
-
Suppliers
DataSheet
General Description
AK5365 General Description
AK5365 is a high-performance 24-bit, 96kHz sampling ADC for consumer audio and digital recording applications. Thanks to AKM's Enhanced Dual-Bit modulator architecture, this analog-to-digital converter has an impressive dynamic range of 103dB with a high level of integration. The AK5365 has a 5-channel stereo input selector, an input Programmable Gain Amplifier with an ALC function. All this integration with high-performance makes the AK5365 well suited for CD and DVD recording systems.
AK5365 Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Units | |
| Power Supplies: |
Analog Digital |AVSS DVSS| (Note2) |
AVDD DVDD GND |
−0.3 −0.3 - |
6.0 6.0 0.3 |
V V V |
| Input Current,Any Pin Except Supplies |
IIN |
- |
±10 |
mA | |
| Analog Input Voltage (VREF,LIN1-5,RIN1-5,LOPIN,ROPIN,IPGAL,IPGAR pins) |
VINA |
−0.3 |
AVDD+0.3 |
V | |
| Digital Input Voltage (All digital input pins) |
VIND |
−0.3 |
DVDD+0.3 |
V | |
|
Ambient Temperature (powered applied) |
Ta |
−40 |
85 |
°C | |
| Storage Temperature |
Tstg |
−65 |
150 |
°C | |
(AVSS, DVSS=0V; Note 1)
Note 1. All voltages with respect to ground.
Note 2. AVSS and DVSS must be connected to the same analog ground plane.
AK5365 Features
1. 24bit Stereo ADC
• 5ch Stereo Inputs Selector
• Input PGA from +12dB to 0dB, 0.5dB Step
• Auto Level Control (ALC) Circuit
• Digital HPF for offset cancellation (fc=1.0Hz@fs=48kHz)
• Digital Attenuator
• Soft Mute
• Single-end Inputs
• S/(N+D) : 94dB
• DR, S/N : 103dB
• Audio I/F Format : 24bit MSB justified, I2S
2. 3-wire Serial P Interface / I2C-Bus
3. Master / Slave Mode
4. Master Clock : 256fs/384fs/512fs
5. Sampling Rate : 32kHz to 96kHz
6. Power Supply
• AVDD: 4.75 ∼ 5.25V (typ. 5.0V)
• DVDD: 3.0 ∼ 5.25V (typ. 3.3V)
7. Power Supply Current : 27mA
8. Ta = -40 ∼ 85°C
9. Package : 44pin LQFP
• 5ch Stereo Inputs Selector
• Input PGA from +12dB to 0dB, 0.5dB Step
• Auto Level Control (ALC) Circuit
• Digital HPF for offset cancellation (fc=1.0Hz@fs=48kHz)
• Digital Attenuator
• Soft Mute
• Single-end Inputs
• S/(N+D) : 94dB
• DR, S/N : 103dB
• Audio I/F Format : 24bit MSB justified, I2S
2. 3-wire Serial P Interface / I2C-Bus
3. Master / Slave Mode
4. Master Clock : 256fs/384fs/512fs
5. Sampling Rate : 32kHz to 96kHz
6. Power Supply
• AVDD: 4.75 ∼ 5.25V (typ. 5.0V)
• DVDD: 3.0 ∼ 5.25V (typ. 3.3V)
7. Power Supply Current : 27mA
8. Ta = -40 ∼ 85°C
9. Package : 44pin LQFP

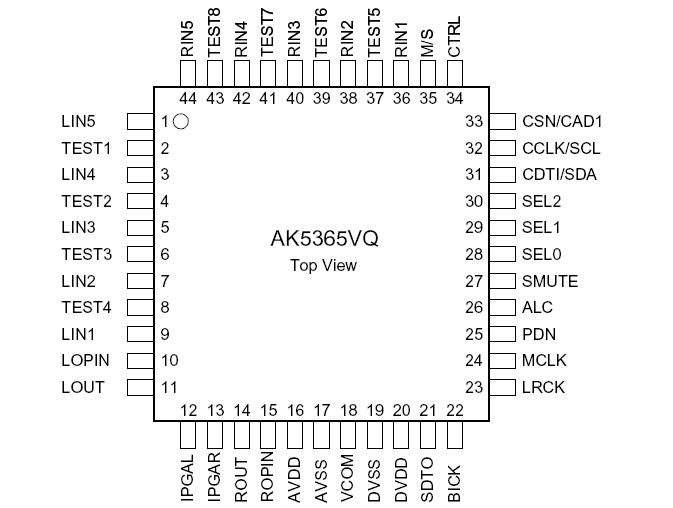

AK5365 Connection Diagram
AK5365
PDF/DataSheet Download
- Datasheet: AK5365
- File Size: 293080 KB
- Manufacturer: AKM [Asahi Kasei Microsystems]
- Click here to Download
