General Description
AK7780 General Description
The AK7780 is a highly integrated audio processor, including a 28-bit floating point DSP, two 24-bit stereo ADC's and one mono ADC. The stereo ADC's feature high performance, achieving 96dB dynamic range, they include 8:1 input selectors. The ADC supports sampling frequencies from 7.35 kHz to 96 kHz. The AK7780 also includes a stereo sample rate converter (SRC), so it can be used as a master device when it receives digital audio inputs. The DSP includes 168kbits of SRAM for audio delay data that is suitable for creating simulated surround fields. The programmable DSP block is realized with 2560step/fs DSP. It supports sampling frequencies from 7.35kHz to 96 kHz. The AK7780 is used to implement complete sound field control, such as echo, 3D, parametric equalization, and other sound enhancements. It is packaged in a 100-lead LQFP package.
AK7780 Maximum Ratings
| Item | Symbol | min | max | Unit |
| Power supply voltage Analog(AVDD) Digital(DVDD) Digital(DVDD18) |AVSS(BVSS) DVSS| (Note 4) |
VA VD VD18 GND |
-0.3 -0.3 -0.3 |
4.3 4.3 2.5 0.3 |
V V V V |
| Input current (except for power supply pin ) | IIN | - | ±10 | mA |
| Analog input voltage AINL+, AINL, AINR+, AINR, AINL2-8, AINR2-8, AINM VREFH,VREFL |
VINA | -0.3 | VA+0.3 | V |
| Digital input voltage | VIND | -0.3 | VD+0.3 | V |
| Operating ambient temperature | Ta | -40 | 85 | |
| Storage temperature | Tstg | -65 | 150 |
AK7780 Features
`Word length: 28-bit (Data RAM F24.4 limited range floating point)
`Instruction cycle time: 8.1 ns (2560step/fs fs=48kHz; 1280step/fs fs=96kHz)
`Multiplier: 24 x 16 40-bit (Double precision available)
`Divider: 24 / 24 24-bit
`ALU: 44-bit arithmetic operation (overflow margin: 4-bits) F24.4 arithmetic and logic operation
`Shift+Register: Flexible setting
`Program RAM: 2048 x 36-bit
`Coefficient RAM: 2048 x 16-bit
`Data RAM: 2048 x 28-bit (F24.4[sign bit + 23-bit mantissa + 4-bit exponent])
`Offset RAM: 64 x 13-bit
`Internal Delay RAM: 168kbits
( 6144 x 28 bit / 2048 x 28 bit + 8192 x 14 bit / 3072 x 28 bit + 6144 x 14 bit
/ 4096 x 28 bit + 4096 x 14 bit) 4 pattern setting
28bit = F24.4 [24 bit sign & mantissa: 4 bit exponent]
14bit = F10.4 [10 bit sign & mantissa: 4 bit exponent]
`Sampling frequency: 7.35kHz ~ 96kHz
`Serial interface port for microcontroller or I2C BUS control
`Master Clock: 2560fs (generated by PLL from 32fs ,64fs, 256fs and 384fs)
`Master/Slave operation
`Serial signal input port (10ch): MSB justified 24-bit / LSB justified 16/20/24-bit and I2S
`Serial signal output port(12ch): MSB justified 24-bit / LSB justified 24,16-bit and I2S (SDOUT1,SDOUT2 and SDOUT3) [ADC] 4 channels (2 stereo pairs)
`24-bit 64X over-sampling delta-sigma (fs = 7.35kHz ~ 96kHz)
`DR, S/N: 96dBA (fs = 48kHz, fully-differential input)
`S/(N+D): 92dB (fs = 48kHz)
`Digital HPF (fc = 1Hz)

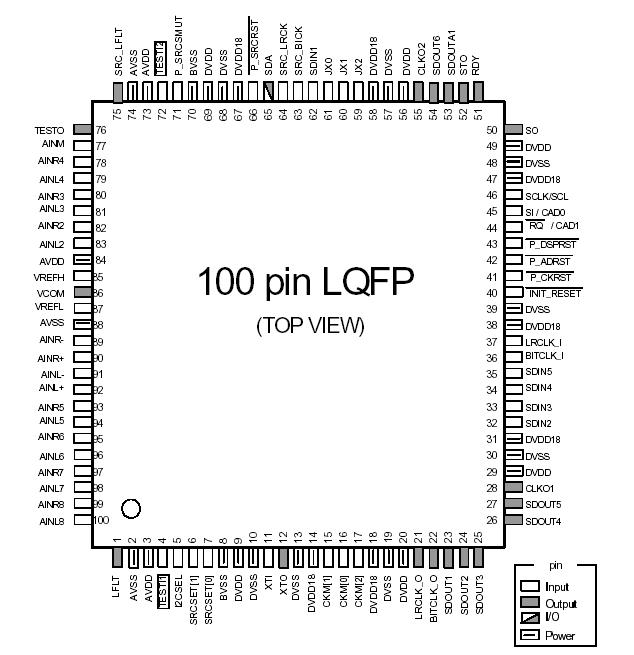

AK7780 Connection Diagram
AK7780
PDF/DataSheet Download
- Datasheet: AK7780
- File Size: 526562 KB
- Manufacturer: AKM
- Click here to Download
