AK93C10A

Features:

ADVANCED CMOS EEPROM TECHNOLOGY
READ/WRITE NON-VOLATILE MEMORY
WIDE VCC OPERATION
Vcc = 1.8V  5.5V
   AK93C85A      16384 bits, 1024    16 organization
   AK93C95A      32768 bits, 2048    16 organization
   AK93C10A      65536 bits, 4096    16 organization
SERIAL INTERFACE
   Interfaces with popular microcontrollers and standard microprocessors
LOW POWER CONSUMPTION
  0.4mA max. Read Operation
  0.8
A Max. Standby
HIGH RELIABILITY
  Endurance : 100K cycles
  Data Retention : 10 years
Automatic address increment (READ)
Automatic write cycle time-out with auto-ERASE (Max. 8ms : VCC=4.5V  5.5V)
Busy/Ready status signal
Software controlled write protection
IDEAL FOR LOW DENSITY DATA STORAGE
  Low cost, space saving, 8-pin package


Pinout

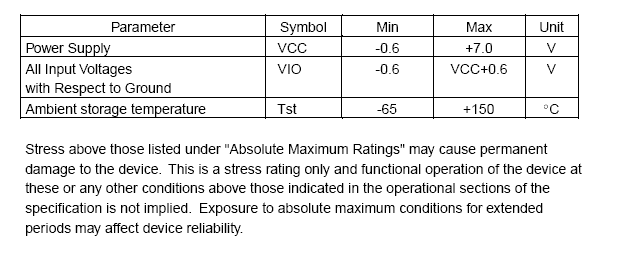

Specifications




Description

The AK93C85A/95A/10A is a 16384/32768/65536-bit serial CMOS EEPROM divided into 1024/2048/4096 registers of 16 bits each. The AK93C85A/95A/10A has 4 instructions such as READ, WRITE, EWEN and EWDS. Those instructions control the AK93C85A/95A/10A.
The AK93C85A/95A/10A can operate full function under wide operating voltage range from 1.8V to 5.5V. The charge up circuit is integrated for high voltage generation that is used for write operation.
A serial interface of AK93C85A/95A/10A, consisting of chip select (CS), serial clock (SK), data-in (DI) and data-out (DO), can easily be controlled by popular microcontrollers or standard microprocessors.AK93C85A/95A/10A takes in the write data from data input pin (DI) to a register synchronously with rising edge of input pulse of serial clock pin (SK). And at read operation, AK93C85A/95A/10A takes out the read data from a register to data output pin (DO) synchronously with rising edge of SK. The DO pin is usually in high impedance state. The DO pin outputs "L" or "H" in case of data output or Busy/Ready signal output.
Software controlled write protection
When Vcc is applied to the part of AK93C85A/95A/10A, the part automatically powers up in the ERASE/WRITE Disable state. In the ERASE/WRITE disable state, execution of WRITE instruction is disabled. Before WRITE instruction is executed, EWEN instruction must be executed. The ERASE/WRITE enable state continues until EWDS instruction is executed or Vcc is removed from the part.
Execution of a read instruction is independent of both EWEN and EWDS instructions.
Busy/Ready status signal
After a write instruction, the DO output serves as a Busy/Ready status indicator. After the falling edge of the CS initiates the self-timed programming cycle, the DO indicates the Busy/Ready status of the AK93C85A/95A/10A, if the CS is brought high after a minimum of 250ns (Tcs). DO=logical "0" indicates that programming is still in progress.DO=logical "1" indicates that the register at the address specified in the instruction has been written with the new data pattern contained in the instruction and the part of AK93C85A/95A/10A is ready for a next instruction. The Busy/Ready status indicator is only valid when CS is active (high). When CS is low, the DO output goes into a high impedance state. The Busy/Ready signal outputs until a start bit (Logic"1") of the next instruction is given to the part.
