Purchase AM79Q021, In-stock AM79Q021 From SeekIC.
MFG:AMD
Part Number: AM79Q021
MFG: AMD
Description: The Am79Q02/021/031 Quad Subscriber Line Audio- Processing Circuit (QSLAC) devices integrate the key f...
- Table of contents:
AM79Q021
-
Suppliers
DataSheet
General Description
AM79Q021 General Description
The Am79Q02/021/031 Quad Subscriber Line Audio- Processing Circuit (QSLAC) devices integrate the key functions of analog linecards into high-performance, very-programmable, four-channel codec-filter devices.The QSLAC devices are based on the proven design of Legerity!s reliable SLAC? device families. Th advanced architecture of the QSLAC devices implements four independent channels and employs digital filters to allow software control of transmission, thus providing a cost-effective solution for the audio- processing function of programmable linecards.
Advanced submicron CMOS technology makes the Am79Q02/021/031 QSLAC devices economical, with both the functionality and the low power consumption needed in linecard designs to maximize linecard density at minimum cost. When used with four Legerity SLICs, a QSLAC device provides a complete software- configurable solution to the BORSCHT functions.
AM79Q021 Maximum Ratings
| Storage Temperature | 60 C TA 125 C |
| Ambient Operating Temperature | 40 C TA 85 C |
| Ambient Relative Humidity | 5 to 95(non-condensing) |
| VCCA with respect to AGND | 0.4 V to 7.0 V |
| VCCA with respect toVCCD | 50 m |
| VCCD with respect to DGND | 0.4 V to 7.0 V |
| VIN with respect to AGND | 0.4 V to (VCCA 0.4 V) |
| AGND with respect to DGND | 0.4 |
| Other pins with respect to DGND | 0.4 V to VCCD 0.4 V |
| Total combined CD1 C5 current per device:Source from VCCD | 40 mA |
| Sink into DGND | 40 mA |
| Latch-up immunity (any pin) | 100 mA |
AM79Q021 Features
`Performs the functions of four codec/filters Software programmable:
`SLIC input impedanc
Transhybrid balanc
Transmit and receive gain
Equalization (frequency response
Digital I/O pin
Programmable debouncing on one inpu
Time slot assigne
Programmable clock slot and PCM transmit clo edge options
`Standard microprocessor interface
`A-law, -law, or linear codin
`Single or Dual PCM ports available
Up to 128 channels (PCLK at 8.192 MHz) per PCM port
Optional supervision on the PCM highwa
`1.536, 1.544, 2.048, 3.072, 3.088, 4.096, 6.144, 6.176, or 8.192 MHz master clock derived from MCLK or PCLK
` Built-in test modes with loopback, generation, and tone P access to PCM datao
` Low-power, 5.0 V CMOS technology
` 5.0 V only operation peration
` Mixed stateMixed state (analog and digital) impedance scaling
` Performance characteristics guaranteed over a 12 dB gain range
` Real Time Data register with interrupt (open drain or TTL output)
` Supports multiplexed SLIC inputs
` Broadcast state
` 256 kHz or 293 kHz chopper clock for Legerity SLICs with switching regulator
` Maximum channel bandwidth for V.34 modems
`SLIC input impedanc
Transhybrid balanc
Transmit and receive gain
Equalization (frequency response
Digital I/O pin
Programmable debouncing on one inpu
Time slot assigne
Programmable clock slot and PCM transmit clo edge options
`Standard microprocessor interface
`A-law, -law, or linear codin
`Single or Dual PCM ports available
Up to 128 channels (PCLK at 8.192 MHz) per PCM port
Optional supervision on the PCM highwa
`1.536, 1.544, 2.048, 3.072, 3.088, 4.096, 6.144, 6.176, or 8.192 MHz master clock derived from MCLK or PCLK
` Built-in test modes with loopback, generation, and tone P access to PCM datao
` Low-power, 5.0 V CMOS technology
` 5.0 V only operation peration
` Mixed stateMixed state (analog and digital) impedance scaling
` Performance characteristics guaranteed over a 12 dB gain range
` Real Time Data register with interrupt (open drain or TTL output)
` Supports multiplexed SLIC inputs
` Broadcast state
` 256 kHz or 293 kHz chopper clock for Legerity SLICs with switching regulator
` Maximum channel bandwidth for V.34 modems

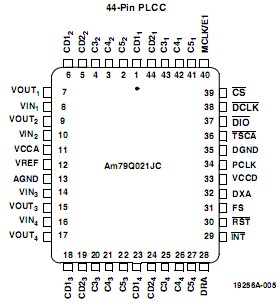

AM79Q021 Connection Diagram
AM79Q021
