Purchase AME8500AETCD20, In-stock AME8500AETCD20 From SeekIC.
Part Number: AME8500AETCD20
Description: The AME8500 family allows the user to customize the CPU reset function without any external components...
- Table of contents:
AME8500AETCD20
-
Suppliers
DataSheet
General Description
AME8500AETCD20 General Description
The AME8500 family allows the user to customize the CPU reset function without any external components.The user has a large choice of reset voltage thresholds,reset time intervals, and output driver configurations, all of which are preset at the factory. Each wafer is trimmed to the customer's specifications.
These circuits monitor the power supply voltage of µP based systems. When the power supply voltage drops below the voltage threshold a reset is asserted immedi-ately (within an interval TD1). The reset remains asserted after the supply voltage rises above the voltage threshold for a time interval, TD2 . The reset output may be either active high (RESET) or active low (RESETB). The reset output may be configured as either push/pull or open drain. The state of the reset output is guaranteed to be correct for supply voltages greater than 1V.
The AME8501 includes all the above functionality plus an overtemperature shutdown function. When the ambi-ent temperature exceeds 80 a reset is asserted and remains asserted until the temperature falls below 60.Space saving SOT23 packages and micropower qui-escent current (<3.0µA) make this family a natural for portable battery powered equipment.
AME8500AETCD20 Maximum Ratings
| Parameter | Maximum | Unit |
| Supply Voltage | 7 | V |
| ESD Classification | B | |
| Input Current, VDD | 20 | mA |
| Output Current, RESET, ResetB | 20 | mA |
| Rate of Rise, VDD | 100 | V/µs |
AME8500AETCD20 Features
Small packages: SOT-23, SOT-89
11 voltage threshold options
Tight voltage threshold tolerance ---±1.50%
5 reset interval options
4 output configuration options
Wide temperature range -------- -40to 85
Low temperature coefficient --- 100ppm/(max)
Low quiescent current < 3.0µA
Thermal shutdown option (AME8501)
AME8500AETCD20 Typical Application
Portable electronics
Power supplies
Computer peripherals
Data acquisition systems
Applications using CPUs
Consumer electronics
Power supplies
Computer peripherals
Data acquisition systems
Applications using CPUs
Consumer electronics

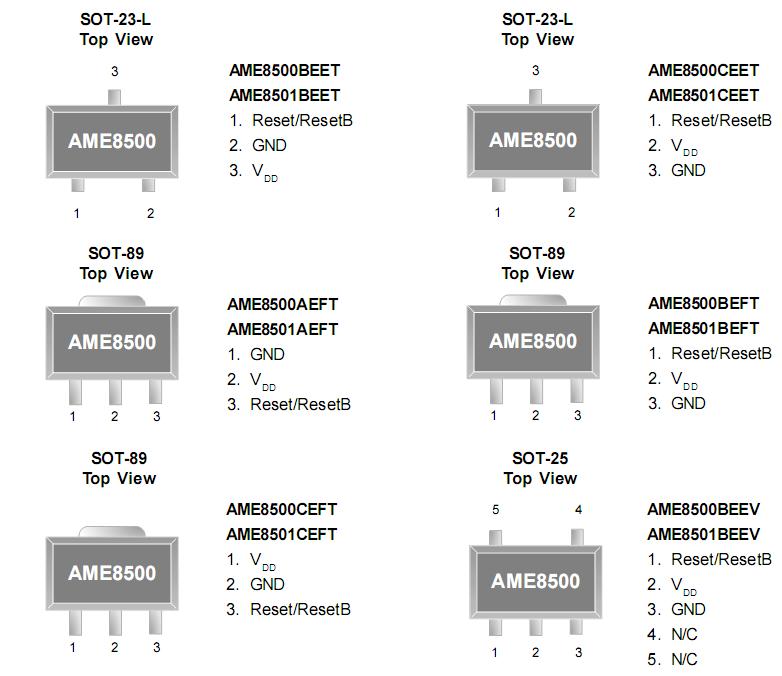

AME8500AETCD20 Connection Diagram
