Product Details

Description



Features:

Very Low Dropout Voltage
Guaranteed 300mA Output
Accurate to within 1.5%
30A Quiescent Current
Over-Temperature Shutdown
Current Limiting
Short Circuit Current Fold-back
Power Good Output Function
Power-Saving Shutdown Mode
Space-Saving SOT-25 (SOT-23-5)
Factory Pre-set Output Voltages
Low Temperature Coefficient


Application

Instrumentation
Portable Electronics
Wireless Devices
Cordless Phones
PC Peripherals
Battery Powered Widgets
Electronic Scales

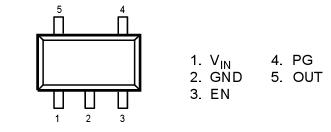

Pinout

Connection Diagram


Specifications

Parameter Maximum Unit
Input Voltage
8   V
Output Current PD / (VIN - VO)   mA
Output Voltage GND - 0.3 to VIN + 0.3    V
ESD Classification B



Description

The AME8802 family of positive, linear regulators fea- ture low quiescent current (30A typ.) with low dropout voltage, making them ideal for battery applications.  The space-saving SOT-23-5 package is attractive for "Pocket" and "Hand Held" applications.

These rugged devices have both Thermal Shutdown,and Current Fold-back to prevent device failure under the "Worst" of operating conditions.

An additional feature is a "Power Good" detector, which pulls low when the output is out of regulation.

The AME8802 is stable with an output capacitance of 2.2F or greater.
