AMS1508

Features:

· Adjustable or Fixed Output 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V
· Output Current of 8A
· Low Dropout, 500mV at 8A Output Current
· Fast Transient Response
· Remote Sense




Application

· High Current Regulators
· Post Regulators for Switching Supplies
· Microprocessor Supply
· Adjustable Power Supply
· Notebook/Personal Computer Supplies

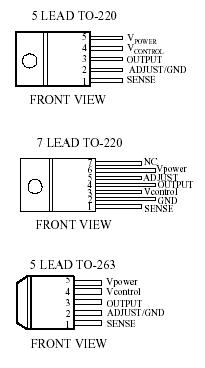

Pinout






Specifications

VPOWER Input Voltage 7V
VCONTROL Input Voltage 13V
Operating Junction Temperature Range
Control Section 0°C to 125°C
Power Transistor0°C to 150°C
Storage temperature- 65°C to +150°C
Soldering information
Lead Temperature (10 sec) 300°C
Thermal Resistance
TO-220 package _JA= 50°C/W
TO-263 package _JA= 30°C/W*
* With package soldering to 0.5in2 copper area over backside ground plane or internal power plane JA can vary from 20°C/W to >40°C/W depending on mounting technique.




Description

AMS1508 series of adjustable and fixed low dropout voltage regulators are designed to provide 8A output current to power the new generation of microprocessors. The dropout voltage of the device is 100mV at light loads and rising to 500mV at maximum output current. A second low current input voltage 1V or greater then the output voltage is required to achieve this dropout. The AMS1508 can also be used as a single supply device. New features have been added to the AMS1508: a remote Sense pin is brought out virtually eliminating output voltage variations due to load changes. The typical load regulation, measured at the Sense pin, for a load current step of 100mA to 8A is less than 1mV. The AMS1508 series has fast transient response. The Adjust pin is brought out on fixed devices. To further improve the transient response the addition of a small capacitor on the Adjust pin is recommended. The AMS1508 series are ideal for generating processor supplies of 2V to 3V on motherboards where both 5V and 3.3V supplies are available. The AMS1508 devices are offered in 5 lead TO-220 and TO-263 (plastic DD) packages.

The The AMS1508 series of adjustable and fixed low dropout voltage regulators are designed to provide 8A output current to power the new generation of microprocessors. The dropout voltage of the device is 100mV at light loads and rising to 500mV at maximum output current. A second low current input voltage 1V or greater then the output voltage is required to achieve this dropout. The AMS1508 can also be used as a single supply device.

New features have been added to the AMS1508: a remote Sense pin is brought out virtually eliminating output voltage variations due to load changes. The typical load regulation, measured at the Sense pin, for a load current step of 100mA to 8A is less than 1mV. The AMS1508 series has fast transient response. The Adjust pin is brought out on fixed devices. To further improve the transient response the addition of a small capacitor on the Adjust pin is recommended.

The AMS1508 series are ideal for generating processor supplies of 2V to 3V on motherboards where both 5V and 3.3V
supplies are available. The AMS1508 devices are offered in 5 lead TO-220 and TO-263 (plastic DD) packages and in the 7 lead TO-220 package.
