Purchase AN1358S, In-stock AN1358S From SeekIC.
MFG:Nat Package Cooled:SMD-8
- Table of contents:
AN1358S
-
Suppliers
DataSheet
General Description
AN1358S Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Supply voltage | VCC | 32 | V | |
| Differential input voltage | VID | 32 | V | |
| Common-mode input voltage | VICM | 0.3 to +32 | V | |
| Output voltage | VO | 24 | V | |
| Power dissipation | AN1358 (AN6562) | PD | 350 | mW |
| AN1358 (AN6562S) | 360 | |||
| Operating ambient temperature | Topr | 20 to +75 | °C | |
| Strage temperature | AN1358 (AN6562) | Tstg | 55 to +150 | °C |
| AN1358S (AN6562S) | 55 to +125 | |||
AN1358S Features
• Built-in phase compensation circuits
• Wide range of input voltage:0V to VCC1.5V
• Wide range of operating supply voltage:
Single power supply:3 to 30V
Dual power supply:±1.5 to ±15V
• Wide range of input voltage:0V to VCC1.5V
• Wide range of operating supply voltage:
Single power supply:3 to 30V
Dual power supply:±1.5 to ±15V

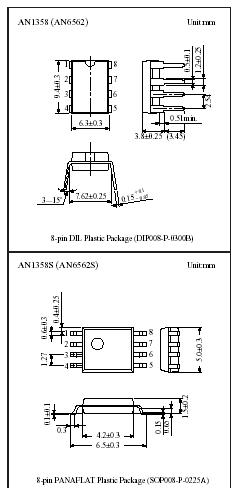

AN1358S Connection Diagram
AN1358S
PDF/DataSheet Download
- Datasheet: AN1358S
- File Size: 33043 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
