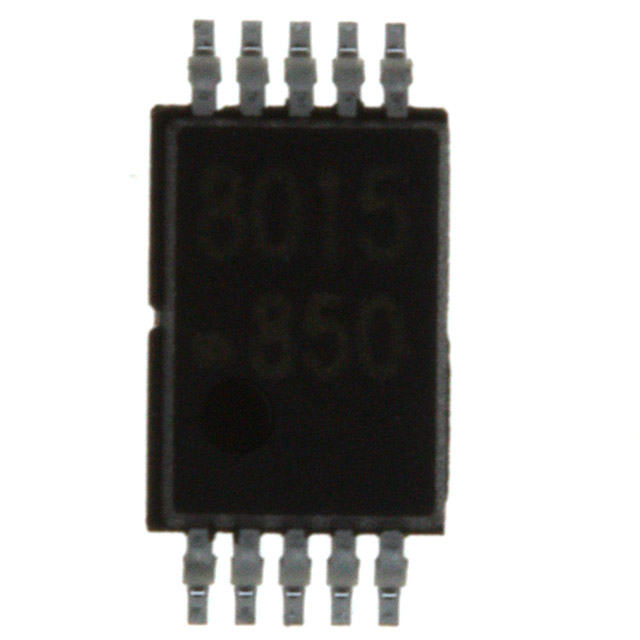

AN8016NSH-E1: IC REG CTRLR BST PWM 10-SSOP

AN8016NSH-E1 Data Sheet

Get Latest Price

Part Number:: AN8016NSH-E1
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AN8000 evaluate
Features: • Input/output voltage difference : 0.3V (max.)• Output current of up to 50m...
AN8000MS evaluate
Application• Cellular phones and othersSpecifications Parameter Symbol Rating ...
AN8001FHK evaluate
Features: · Incorporating a high precision reference voltage source : 1.23 V (typ.)· Wide dynamic ...

Product Details

Quick Details

Series:	-	Package / Case :	TQFN-32
Manufacturer:	Panasonic Electronic Components - Semiconductor Products	PWM Type:	Controller
Number of Outputs:	1	Frequency - Max:	1MHz
Duty Cycle:	85%	Voltage - Supply:	1.8 V ~ 14 V
Buck:	No	Boost:	Yes
Flyback:	No	Inverting:	No
Doubler:	No	Divider:	No
Cuk:	No	Isolated:	No
Operating Temperature:	-30°C ~ 85°C	Package / Case:	10-FSOP (0.169", 4.30mm Width)

Description

Series: -
Boost: Yes
Inverting: No
Doubler: No
Divider: No
Cuk: No
Isolated: No
Buck: No
Number of Outputs: 1
PWM Type: Controller
Flyback: No
Frequency - Max: 1MHz
Duty Cycle: 85%
Operating Temperature: -30°C ~ 85°C
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Package / Case: 10-FSOP (0.169", 4.30mm Width)
Voltage - Supply: 1.8 V ~ 14 V
Packaging: Cut Tape (CT)

Parameters:

Technical/Catalog Information	AN8016NSH-E1
Vendor	Panasonic - SSG (VA)
Category	Integrated Circuits (ICs)
Type	Step-Up (Boost)
Number of Outputs	1
Voltage - Input	1.8 ~ 14 V
Voltage - Output	Up to 15V
Current - Output	40mA
Power - Output	115mW
Package / Case	10-SSOP
Packaging	Cut Tape (CT)
Internal Switch(s)	Yes
Synchronous	No
Rds (On)	-
Operating Temperature	-30°C ~ 85°C
Frequency - Switching	20kHz ~ 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AN8016NSH E1 AN8016NSHE1 AN8016NSHE1CT ND AN8016NSHE1CTND AN8016NSHE1CT
