Purchase AN8017SA, In-stock AN8017SA From SeekIC.
MFG:Panasonic Package Cooled:TSSOP D/C:07+
- Table of contents:
AN8017SA
-
Suppliers
DataSheet
General Description
AN8017SA Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Supply voltage | VCC |
15 |
V |
| Off terminal allowable application voltage | VOFF | 15 | V |
| IN-1 terminal allowable application voltage *2 | VIN-1 | 6 | V |
| IN+2 terminal allowable application voltage *2 | VIN+2 | 6 | V |
| Supply current | ICC | - | mA |
| Output source current | ISO(OUT) | 50 | mA |
| Output sink current | ISI(OUT) | +80 | mA |
| Power dissipation *1 | PD | 135 | mW |
| Operating ambient temperature | Topr | -30 to +85 | °C |
| Storage temperature | Tstg | -55 to +150 | °C |
AN8017SA Features
Wide operating supply voltage range (1.8 V to 14 V)
Incorporating a high precision reference voltage circuit (allowance: ± 2%)
Control in a wide output frequency range is possible (20 kHz to 1 MHz)
Built-in wideband error amplifier
(single gain bandwidth: 10 MHz typical)
A built-in timer latch short-circuit protection circuit
(charge current: 1.1 mA typical)
Incorporating an under-voltage lock-out circuit (U.V.L.O.)
(circuit operation-starting voltage: 1.67 V typical)
Dead-time is variable
Flatness of switching current can be obtained by staggering the turn-on timing of each channel
Built-in unlatch function
When DT1 pin is low level or DT2 pin is high level, independent turn-off is possible.
Incorporating an on/off control function
(active-high control input, standby mode current: 1 mA maximum)
Parallel operation is possible
Totem pole output
Output source-current: -50 mA maximum (Constant current output with a less supply voltage fluctuation is
possibleby connecting an external resistor to pin 6 and pin 11)
Output sink-current: +80 mA maximun
Incorporating a high precision reference voltage circuit (allowance: ± 2%)
Control in a wide output frequency range is possible (20 kHz to 1 MHz)
Built-in wideband error amplifier
(single gain bandwidth: 10 MHz typical)
A built-in timer latch short-circuit protection circuit
(charge current: 1.1 mA typical)
Incorporating an under-voltage lock-out circuit (U.V.L.O.)
(circuit operation-starting voltage: 1.67 V typical)
Dead-time is variable
Flatness of switching current can be obtained by staggering the turn-on timing of each channel
Built-in unlatch function
When DT1 pin is low level or DT2 pin is high level, independent turn-off is possible.
Incorporating an on/off control function
(active-high control input, standby mode current: 1 mA maximum)
Parallel operation is possible
Totem pole output
Output source-current: -50 mA maximum (Constant current output with a less supply voltage fluctuation is
possibleby connecting an external resistor to pin 6 and pin 11)
Output sink-current: +80 mA maximun
AN8017SA Typical Application
· LCD displays, digital still cameras, and PDAs
AN8017SA
PDF/DataSheet Download
- Datasheet: AN8017SA
- File Size: 210804 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
- ·AN8
- Linear
- POWER CONDITIONING TECHNIQUES FOR BATTERIES
- 166575 KB
- ·an80
- 291790 KB
- ·AN8000
- PANASONIC [Panasonic Semiconductor]
- 3-pin Positive Output Low Dropout Voltage Regulator 50mA Type
- 57581 KB
- ·AN8000M
- PANASONIC [Panasonic Semiconductor]
- 3-pin Positive Output Low Dropout Voltage Regulator 50mA Type
- 57581 KB
- ·AN8000MS
- panasonic
- 94227 KB
- ·AN8001FHK
- PANASONIC [Panasonic Semiconductor]
- Gradation voltage generation IC for liquid crystal display
- 67823 KB
- ·AN8002
- PANASONIC [Panasonic Semiconductor]
- 3-pin, positive output, low dropout voltage regulator (50 mA type)
- 162997 KB
- ·AN8002M
- PANASONIC [Panasonic Semiconductor]
- 3-pin, positive output, low dropout voltage regulator (50 mA type)
- 162997 KB
AN8017SA Relative Products
AN8016SH-E1V
IC DC/DC CONV CONTROL SSOP-10

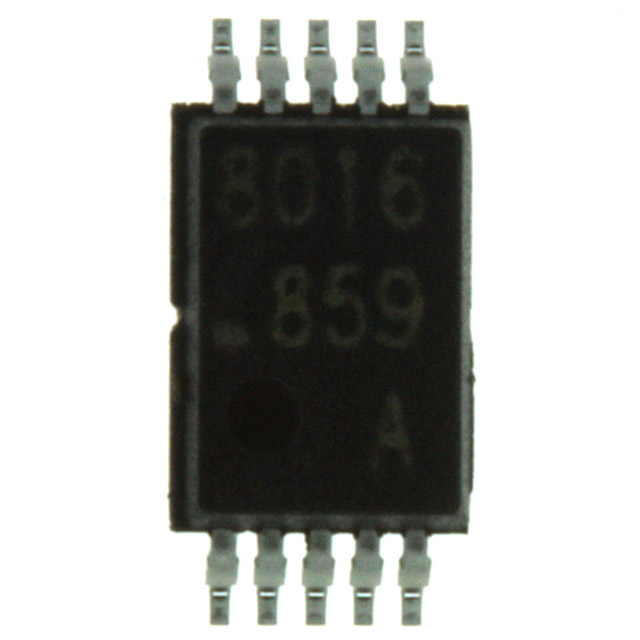

AN8016SHAE1V
IC DC/DC CONV CONTROL SSOP-10
AN8016NSHE1V
IC DC/DC CONV CONTROL SSOP-10
AN8016NSH-E1
IC DC/DC CONVERTER 1CH SSONF-10D

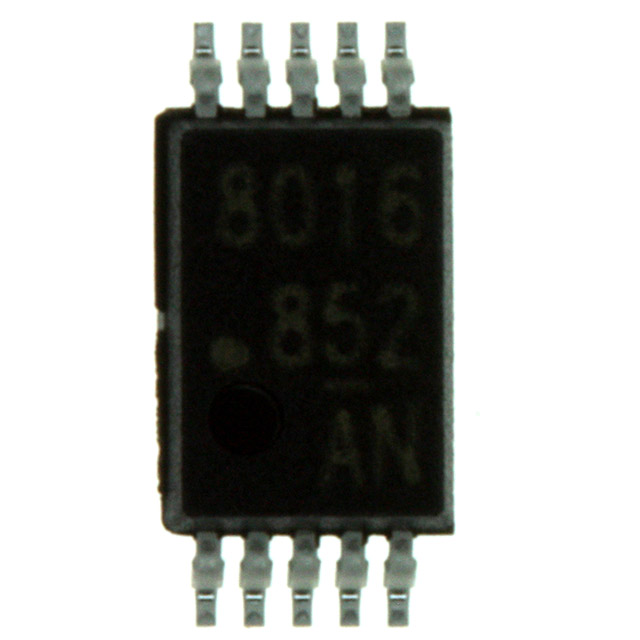

AN8016NSHAVF
