Part Number: AN8022SB
Description: Pin No. Symbol Symbol
AN8022SB General Description
| Pin No. | Symbol | Symbol | Pin No. | Symbol | Description |
| 1 | PGND | Grounding pin | 10 | N.C. | N.C. |
| 2 | VOUT | Power MOSFET direct drive pin | 11 | SS | Soft start pin |
| 3 | PVCC | Power supply voltage pin | 12 | RT | Charge and discharge current of triangular wave determining resistance connection pin |
| 4 | SVCC | Power supply voltage pin | |||
| 5 | TIM/OVP | Pin for overvoltage protection and timer latch combined use | |||
| 13 | CT | Triangular wave generating capacitance connection pin | |||
| 6 | IFB | Power supply output photocoupler current feedback signal input pin | |||
| 14 | N.C. | N.C. | |||
| 7 | N.C. | N.C. | 15 | CLM(-) | Pulse-by-pulse overcurrent protection input pin |
| 8 | N.C. | N.C. | |||
| 9 | N.C. | N.C. | 16 | SGND | Grounding pin |
AN8022SB Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Supply voltage | VCC | 35 | V | |
| OVP terminal allowable application voltage | VOVP | VCC | V | |
| CLM terminal allowable application voltage | VCLM | - 0.3 to +7.0 | V | |
| SS terminal allowable application voltage | VSS | - 0.3 to +7.0 | V | |
| Constant output current | IO | ±150 | mA | |
| Peak output current | IOP | ±1 000 | mA | |
| IFB terminal allowable application voltage | IFB | -5 | mA | |
| Power dissipation | AN8022L | PD | 658 | mW |
| AN8022SB | 340 | |||
| Operating ambient temperature * | Topr | -30 to +85 | °C | |
| Storage temperature * | Tstg | -55 to +150 | °C | |
AN8022SB Features
· Pre-start operating current is as small as 70 mA (typical) so that it is possible to miniaturize the start resistor.
· Output block employs totem pole method.
The absolute maximum rating of ±1.0 A (peak) allows the direct drive of power MOSFET.
· Built-in pulse-by-pulse overcurrent protection circuit
· Built-in protection circuit against malfunction at low voltage (on/off: 14.2 V/9.2 V)
· Maximum Duty is 44% (typical)
· Equipped with timer latch function and overvoltage protection circuit.
· Two kinds of packages: 9-pin SIP, 16-pin SOP
AN8022SB Typical Application

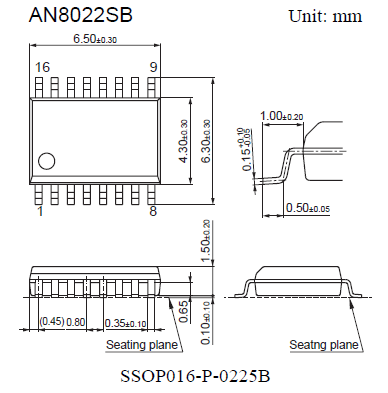

AN8022SB Connection Diagram
AN8022SB
