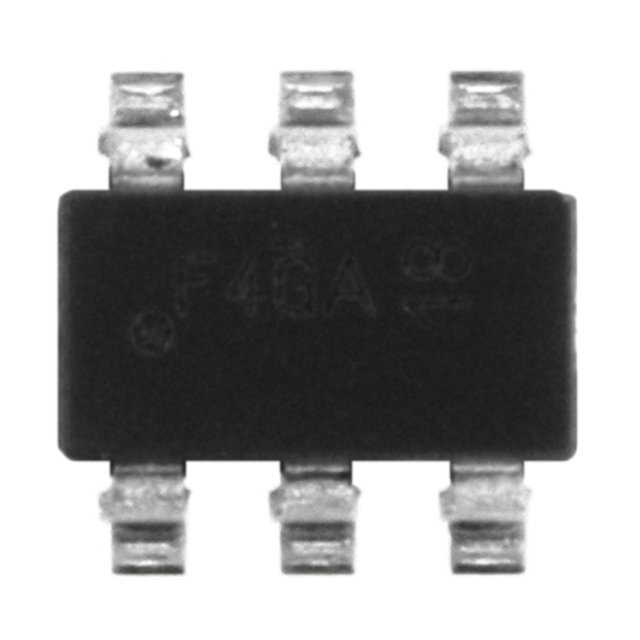

AO6604L Product Image

AO6 Series Datasheet download

Five Points

Part Number: AO6604L



MFG: ALPHA

Package Cooled: SOT-163

D/C: 07+(ROHS)

Description: The AO6604 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs ...


Urgent Purchase

AO6604L General Description


The AO6604 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs form a high-speed power inverter, suitable for a multitude of applications. AO6604L( Green Product ) is offered in a lead-free package.

AO6604L Maximum Ratings

Paramete Symbol Max n-channel Max p-channel Units
Drain-Source Voltage VDS 20 -20 V
Gate-Source Voltage VGS ±8 ±8 V
Continuous Drain Current A TA=25°C ID 3.4 -2.5 A
TA=70°C 2.7 -2.0
Pulsed Drain Current B IDM 15 -15
Power Dissipation A TA=25°C PD 1.15 1.15 W
TA=70°C 0.73 0.73
Junction and Storage Temperature Range TJ, TSTG -55 to 150 -55 to 150 °C

AO6604L Features

VDS (V)                   -20V -20V
ID = 3.4A               -2.5A
RDS(ON)
< 60m                 < 110m (VGS = 4.5V)
< 75m                 < 140m (VGS = 2.5V)
< 100m               < 200m (VGS = 1.8V)
