AO6804A

MOSFET 2N-CH 20V 5A 6TSOP

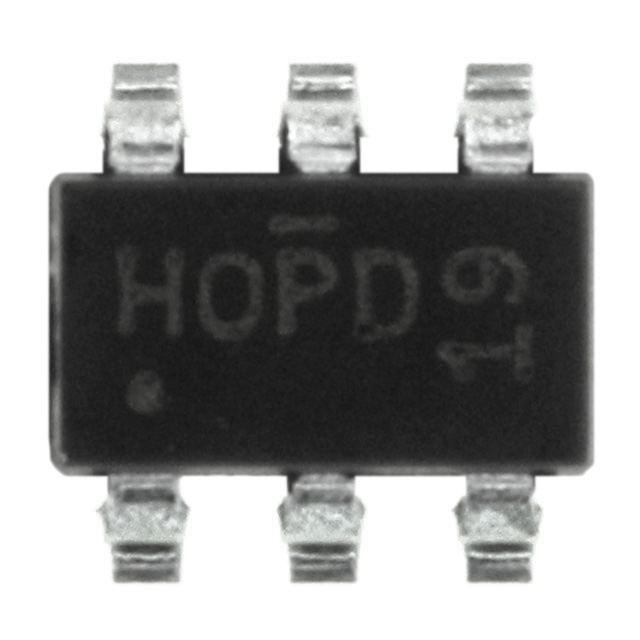

product image

AO6804A Picture
See larger image
SeekIC No. : 003429812 Detail

AO6804A: MOSFET 2N-CH 20V 5A 6TSOP

AO6804A Data Sheet

floor Price/Ceiling Price

US $ .07~.07 / Piece | Get Latest Price
Part Number:
AO6804A
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~6000
  • Unit Price
  • $.07
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Alpha & Omega Semiconductor Inc
FET Type: 2 N-Channel (Dual) FET Feature: Logic Level Gate
Drain Source Voltage VDS : + / - 20 V Drain to Source Voltage (Vdss): 20V
Current - Continuous Drain (Id) @ 25° C: 5A Rds On (Max) @ Id, Vgs: 28 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id: 1V @ 250µA Gate Charge (Qg) @ Vgs: 7.5nC @ 4.5V
Input Capacitance (Ciss) @ Vds: 225pF @ 10V Power - Max: 1.3W
Mounting Type: Surface Mount Package / Case: 6-LSOP (0.063", 1.60mm Width)
Supplier Device Package: 6-TSOP

Description

FET Feature: Logic Level Gate
Mounting Type: Surface Mount
Series: -
FET Type: 2 N-Channel (Dual)
Drain to Source Voltage (Vdss): 20V
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 6-TSOP
Power - Max: 1.3W
Gate Charge (Qg) @ Vgs: 7.5nC @ 4.5V
Current - Continuous Drain (Id) @ 25° C: 5A
Packaging: Tape & Reel (TR)
Manufacturer: Alpha & Omega Semiconductor Inc
Rds On (Max) @ Id, Vgs: 28 mOhm @ 5A, 4.5V
Input Capacitance (Ciss) @ Vds: 225pF @ 10V
Package / Case: 6-LSOP (0.063", 1.60mm Width)
