FET Feature: Logic Level Gate
Mounting Type: Surface Mount
Series: -
Drain to Source Voltage (Vdss): 30V
Vgs(th) (Max) @ Id: 1.5V @ 250µA
Package / Case: 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 8-TSSOP
Rds On (Max) @ Id, Vgs: 18 mOhm @ 7A, 10V
Power - Max: 1.5W
Current - Continuous Drain (Id) @ 25° C: 7A
Packaging: Tape & Reel (TR)
Manufacturer: Alpha & Omega Semiconductor Inc
Input Capacitance (Ciss) @ Vds: 1060pF @ 15V
Gate Charge (Qg) @ Vgs: 14nC @ 4.5V
FET Type: 2 N-Channel (Dual) Common Drain
Features: ·VDS (V) = 30V
·ID = 7A (VGS = 10V)
·RDS(ON) < 18mΩ (VGS = 10V)
·RDS(ON) < 20mΩ (VGS = 4.5V)
·RDS(ON) < 27mΩ (VGS = 2.5V)

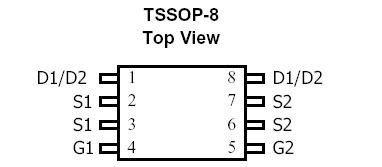

·ESD Rating: 1500V HBMPinout
Specifications
|
Parameter |
Symbol |
Maximum |
Units |
Drain-Source Voltage
Gate-Source Voltage |
VDS
VGS |
30
±12
|
V
V |
Continuous Drain
Current A |
TC=25°C
TC=70°C |
ID |
7
5.5
|
A |
| Pulsed Drain CurrentB |
IDM |
30 |
Power Dissipation A
|
TC=25°C
TC=70°C |
PD
|
1.5
0.96 |
W |
| Junction and Storage Temperature Range |
TJ, TSTG |
-55 to 150 |
°C |
DescriptionThe AO8818 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V while retaining a 12V VGS(MAX) rating. It is ESD protected. This device is suitable for use as a uni-directional or bidirectional load switch, facilitated by its common-drain configuration. Standard Product AO8818 is Pb-free (meets ROHS & Sony 259 specifications). AO8818L is a Green Product ordering option. AO8818 and AO8818L are electrically identical.
AO8818 Data Sheet
