Product Details

Description

Features:

• 0.7V maximum dropout voltage at 4A load current
• Built-in Thermal shutdown
• Output current limiting
• Adjustable or fixed output voltage
1.5V, 1.8V, 2.5V, 3.3V, 5.0V
• Fast transient response
• Good noise rejection
• Packages: SOP-7L, TO220-5L and TO263-5L

Pinout

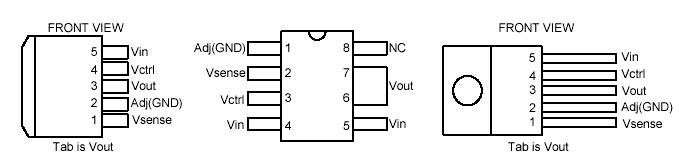

Connection Diagram

Specifications

Symbol	Parameter	Rating	Unit
V_IN	Input Voltage	16	V
V_ctrl	Control Input voltage	18	V
P_D	Power dissipation	Internally limited
T_ST	Storage temperature Range	-65 to +150
T_OP	Operation Junction Temperature Range	0 to +150

Part Number	AP1184
Channel	1
Output Current (A)	4
Dropout Voltage Max (V)	0.85
Quiescent Current typ (uA)
Operating Input Voltage (V)	16
Output Voltage (V)	1.5/ 1.8/ 2.5/ 3.3/ 5.0/ ADJ
Operating Ambient Temp Range (C)	0 to 125

Description

AP1184 is a 4A regulator with extremely low dropout voltage. This product is specifically designed to provide well regulated supply for applications requiring 2.8V or lower voltages from 3.3V ATX power supplies where high efficiency of the switch can be achieved without the cost and complexity associated with switching regulator. One such application AP1184 is the new graphic chipsets that requires anywhere from 2.4V to 2.7V supply.
