General Description
AP3019 General Description
The AP3019 is an inductor-based DC/DC converter designed to drive up to five white LEDs in series for backlight. Only one feedback resistor is needed to control the LED current and obtain satisfied brightness.
A constant frequency 1.0MHz PWM control scheme is employed in this IC, which means the tiny external components can be used. In fact, 1mm tall inductor and 0.22F output capacitor for the typical application is very appropriate. Additionally, the schottky diode in boost circuit is integrated in this chip. AP3019 also provides a disable port to ease its use for different systems.
The over output voltage protection is equipped in AP3019. When any LED is broken or in other abnormal conditions, the output voltage will be clamped to 27V.
The AP3019 is available in standard SOT-23-6 package.
AP3019 Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
|
Input Voltage |
VIN |
20 |
V |
|
SW Voltage |
27 |
V | |
|
FB Voltage |
20 |
V | |
|
CTRL Voltage |
20 |
V | |
|
Thermal Resistance (Junction to Atmosphere, no Heat sink) |
RJA |
265 |
oC/W |
|
Operating Junction Temperature |
150 |
oC | |
|
Storage Temperature Range |
TSTG |
-65 to 150 |
oC |
|
Lead Temperature (Soldering, 10sec) |
TLEAD |
260 |
oC |
|
ESD (Machine Model) |
250 |
V | |
|
ESD (Human Body Model) |
2000 |
V |
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended
periods may affect device reliability.
AP3019 Features
` Inherently Uniform LED Current
` High Efficiency up to 84%
` No Need for Extra Schottky Diode
` Over Output Voltage Protection
` Drives 2 to 5 LEDs
` Fast 1.0MHz Switching Frequency
` Uses Tiny 1mm Tall Inductor
` Requires Only 0.22F Output Capacitor
` High Efficiency up to 84%
` No Need for Extra Schottky Diode
` Over Output Voltage Protection
` Drives 2 to 5 LEDs
` Fast 1.0MHz Switching Frequency
` Uses Tiny 1mm Tall Inductor
` Requires Only 0.22F Output Capacitor
AP3019 Typical Application
· Cellular Phones
· Digital Cameras
· LCD modules
· GPS Receivers
· PDAs, Handheld Computers
· Digital Cameras
· LCD modules
· GPS Receivers
· PDAs, Handheld Computers

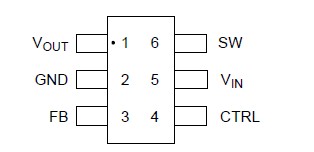

AP3019 Connection Diagram
AP3019
PDF/DataSheet Download
- Datasheet: AP3019
- File Size: 294225 KB
- Manufacturer: BCD Semiconductor
- Click here to Download
- ·AP3
- AP3 - Fotodioda
- 188635 KB
- ·AP3003S-12E1
- BCDSEMI
- Microminiature Surface Mount Signal Relay
- 264233 KB
- ·AP3003S-12TRE1
- BCDSEMI
- SURFACE MOUNT SHIELDED POWER INDUCTORS
- 264233 KB
- ·AP3003S-3.3E1
- BCDSEMI
- 150kHz 3A BUCK DC-DC CONVERTER
- 264233 KB
- ·AP3003S-3.3TRE1
- BCDSEMI
- SURFACE MOUNT SHIELDED POWER INDUCTORS
- 264233 KB
- ·AP3003T-12E1
- BCDSEMI
- Chip Transponder Inductors
- 264233 KB
- ·AP3008KTR
- BCDSEMI
- WHITE LED DRIVER
- 60821 KB
- ·AP3008KTR-E1
- BCDSEMI
- WHITE LED DRIVER
- 60821 KB
AP3019 Relative Products
AP3009
The AP3009 is an inductor-based DC/DC converter designed to drive up to six white LEDs in series for backlight. Only one feedback resistor is needed to control the LED current and obtain satisfied brightness. A constant frequency 1.2MHz PWM control scheme is...
AP3008
The AP3008 is a 1.2MHz PWM boost switching regulator designed for constant-current white LED driver applications.The AP3008 can drive a string of 2 to 3 white LEDs from a 2.7V supply in series, ensuring uniform brightness and eliminating several ballast resi...
AP3007
AP3003
The AP3003 series of regulators are fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 3A load with excellent line and load regulation. These regulators include internal frequency compensation and a fixed frequency oscillator so that ...

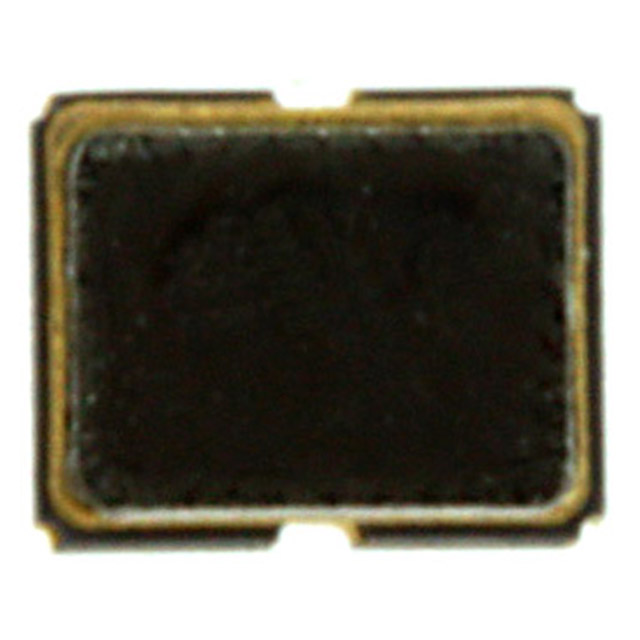

AP2S-BLANKS
