Features: · Wide Operating Voltage: 2.3V~6V· Low Dropout Voltage: 290mV @ 3V/300mA· Fixed Output Voltages: 1.5V~3.5Vwith step 100mV, 2.85V· Guaranteed 300mA Output Current· High PSRR: 74dB before 10KHz· Low Output Noise: 36mVRMS at 100Hz to 100KHz· Current Limit Protection· Controlled Short Circui...
APL5312: Features: · Wide Operating Voltage: 2.3V~6V· Low Dropout Voltage: 290mV @ 3V/300mA· Fixed Output Voltages: 1.5V~3.5Vwith step 100mV, 2.85V· Guaranteed 300mA Output Current· High PSRR: 74dB before 10...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The APL5312 is a ultra low noise, low dropout linear regulator, which operate from 2.3V to 6V input voltage and deliver up to 300mA. Typical dropout voltage is only 290mV at 300mA loading. Designed for use in RF applications, the high PSRR 74dB and low noise 36mVRMS makes it an ideal choice.

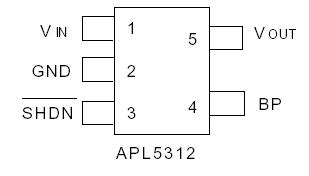

Design with an internal P-channel MOSET pass element, the APL5312 maintain a low supply current, independent of the load current and dropout voltage. Other features include thermal-shutdown protection and current limit protection to ensure specified output current and controlled short-circuit current. The APL5312 regulator come in a miniature SOT23-5 and SC70-5 package.
