APL5330

Features: · Fast Transient Response· High Output Accuracy- ±20mV over Load, Output Voltage Offset and Temperature· Adjustable Output Voltage by External Resistors· Current-Limit Protection· On-Chip Thermal Shutdown· Shutdown for Standby or Suspend Mode· Simple SOP-8 and SOP-8 with Thermal Pad Pack...

product image

APL5330 Picture
See larger image
SeekIC No. : 004286676 Detail

APL5330: Features: · Fast Transient Response· High Output Accuracy- ±20mV over Load, Output Voltage Offset and Temperature· Adjustable Output Voltage by External Resistors· Current-Limit Protection· On-Chip ...

APL5330 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APL5330
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Fast Transient Response
· High Output Accuracy
- ±20mV over Load, Output Voltage Offset and Temperature
· Adjustable Output Voltage by External Resistors
· Current-Limit Protection
· On-Chip Thermal Shutdown
· Shutdown for Standby or Suspend Mode
· Simple SOP-8 and SOP-8 with Thermal Pad Packages
· Lead Free Available (RoHS Compliant


Application

· VGA Card Power
· Chip Set Power

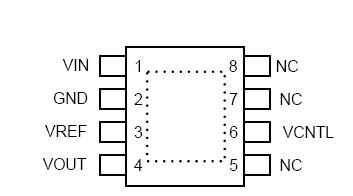

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit
VCNTL VCNTL Supply Voltage, VCNTL to GND -0.2 ~ 7 V
VIN VIN Supply Voltage, VIN to GND -0.2 ~ 3.9 V
PD Power Dissipation Internally Limited W
TJ Junction Temperature 150 ºC
TSTG Storage Temperature -65 ~ 150 ºC
TSDR Soldering Temperature, 10 Seconds 300 ºC
VESD Minimum ESD Rating (Human Body Mode) ±3 KV



Description

The APL5330 integrates a power transistor to provide regulated voltage with maximum output current of 2A. It also incorporates current-limit, thermal shutdown and shutdown control functions into a single chip.

The current-limit circuit limits the maximum output current in overload or short-circuit conditions.

The on-chip thermal shutdown provides protection against any combination of overload that would create excessive junction temperature. The output voltage of the APL5330 tracks the reference voltage on VREF pin. A resistor divider connected to VREF pin is usually used to provide reference voltage to the IC. In addition, an external ceramic capacitor and an open-drain transistor connected to VREF pin provides soft-start and shutdown control. Applying and holding a voltage below 0.35V (typ.) to VREF shuts off the outpu
