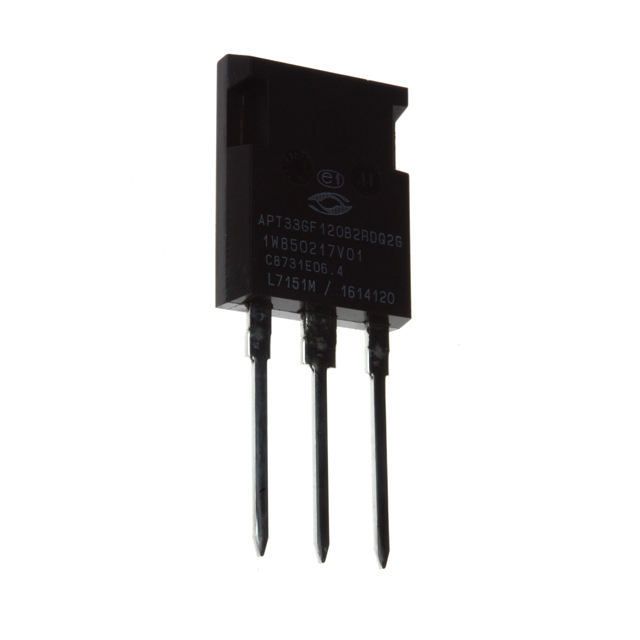

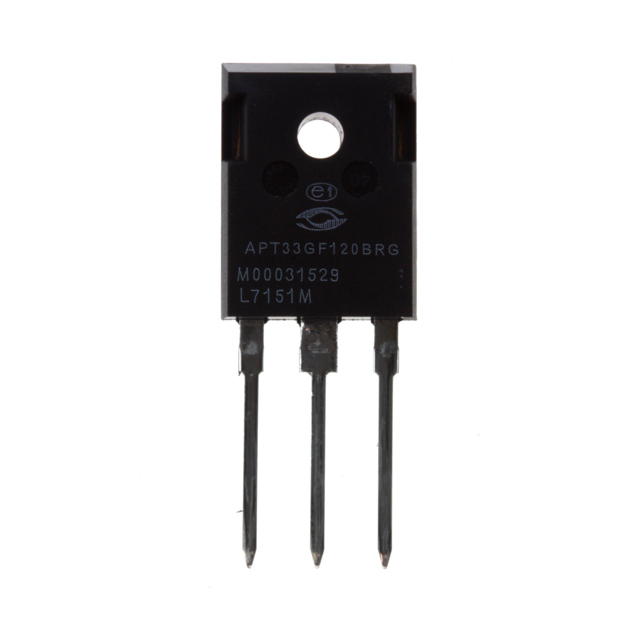

APT33GF120HR Product Image

APT Series Datasheet download

Five Points

Part Number: APT33GF120HR



MFG: APT



D/C: `06+(pb-free)

Description: The Fast IGBT is a new generation of high voltage power IGBTs. Using Non-Punch Through Technology the ...


Urgent Purchase

APT33GF120HR General Description


The Fast IGBT is a new generation of high voltage power IGBTs. Using Non-Punch Through Technology the Fast IGBT offers superior ruggedness, fast switching speed and low Collector-Emitter On voltage.

APT33GF120HR Maximum Ratings

Symbol Parameter APT33GF120HR
UNIT
VCES Collector-Emitter Voltage
1200
Volts
VCGR Collector-Gate Voltage (RGE = 20K)
1200
VGE Gate-Emitter Voltage
±20
IC1 Continuous Collector Current @ TC = 25°C
38
Amps
IC2 Continuous Collector Current @ TC = 25°C
33
ICM Pulsed Collector Current @ TC = 25°C
76
ILM RBSOA Clamped Inductive Load Current @ Rg = 11 TC = 125°C
66
EAS Single Pulse Avalanche Energy
65
mJ
PD Total Power Dissipation
205
Watts
TJ,TSTG Operating and Storage Junction Temperature Range
-55 to 150
TL Max. Lead Temp. for Soldering: 0.063" from Case for 10 Sec.
300

APT33GF120HR Features

• Low Forward Voltage Drop
• High Freq. Switching to 20KHz
• Low Tail Current
• Ultra Low Leakage Current
• Avalanche Rated
• RBSOA and SCSOA Rated
• Hermetic Package
