Product Details

Description



Features:

• Over Voltage Protection and Lock Out for
   3.3 V, 5 V, and 12 V
• Under Voltage Protection and Lock Out for
   3.3 V and 5 V
• Fault Protection Output with Open Drain
   Output Stage
• Open Drain Power Good Output Signal for
  Power Good Input, 3.3 V and 5 V
• 300 ms Power Good Delay
• 2.36ms PSON Control to FPO Turn Off Delay
• 38 ms Control Debounce
• 75 ms Delay for 3.3V and 5V Under Voltage  Protection
• 73 s Width Noise Deglitches
• Wide Power Supply Voltage Range
  from 4 V to 15 V


Application

• PC Switching Power Supply

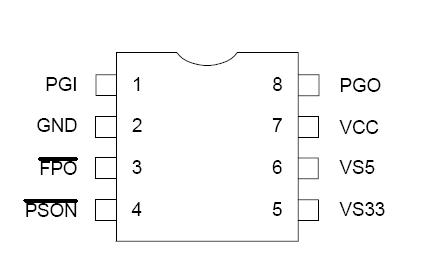

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit
VCC Supply Voltage 16 V
VS5, VS33 5V and 3.3V Input Voltage(Note 1) 8 V
FPO Fault Protection Output Voltage 16 V
PSON ON/OFF Control Input Voltage(Note 1) 8 V
PGI Power Good Input Voltage(Note 1) 8 V
PGO Power Good Output Voltage(Note 1) 8 V
TA Ambient Temperature Range 0 to 70 °C
TSTG Storage Temperature Range -65 to +150 °C
TL Lead Temperature (Soldering, 10 second) 260 °C
Note 1: For a short period (<1 sec) over voltage test, these pins can withstand up to 12V.


Description

The APW1680 is designed to minimize the external components of personal-computer switching power supply systems. It provides protection circuits, power good indicator, fault protection output FPO and control.

OVP (over voltage protection) monitors 3.3V, 5 V, and 12 V (12 V OV detects via V CC terminal). UVP (under voltage protection) monitors 3.3V and 5V. When an OV or UV condition is detected, the PGO (power good output) is set to low and FPOis latched to high. PSON from low to high resets the protection latch.

Power good feature monitors PGI, 3.3V and 5V under voltages, and issues a power good signal when they are ready.
