Part Number: AS165-59
Description: The AS165-59 SPST IC FET switch is absorptive on the input.The switch features high isolation and...
- Table of contents:
AS165-59
-
Suppliers
DataSheet
General Description
AS165-59 General Description
The AS165-59 SPST IC FET switch is absorptive on the input.The switch features high isolation and low insertion loss. Ideal building block for base station applications where synthesizer isolation is critical.Use in conjunction with the AS164-80 SPDT switch to meet GSM synthesizer switch isolation requirements.
AS165-59 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 2W Max. > 500 MHz 0/+8 V Control |
| Supply Voltage | +8 V |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS165-59 Features
Single Positive Control Voltage (0, +5 V)
Base Station Synthesizer Switch
High Isolation (45 dB @ 0.9, 1.9 GHz)
J1 Port Non-Reflective
Miniature Low Cost MSOP-8 Plastic Package
Base Station Synthesizer Switch
High Isolation (45 dB @ 0.9, 1.9 GHz)
J1 Port Non-Reflective
Miniature Low Cost MSOP-8 Plastic Package

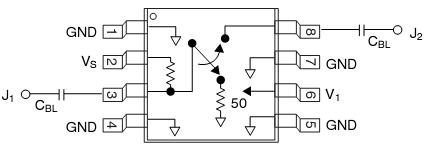

AS165-59 Connection Diagram
AS165-59
