Part Number: AS169-73
MFG: ALPHA
Description: The AS169-73 is an IC FET SPDT switch in a low cost SOT-6 plastic package. The AS169-73 features low insertion loss and...
- Table of contents:
AS169-73
-
Suppliers
DataSheet
General Description
AS169-73 General Description
The AS169-73 is an IC FET SPDT switch in a low cost SOT-6 plastic package. The AS169-73 features low insertion loss and positive voltage operation with very low DC power consumption. This general purpose switch can be used in a variety of telecommunications applications.
AS169-73 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 6 W > 500 MHz, 0/+7 V Control |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS169-73 Features
P1 dB +30 dBm Typical @ +3 V
IP3 52 dBm Typical
Low Insertion Loss (0.3 dB @ 0.9 GHz)
Low DC Power Consumption
Ultra Miniature Low Cost SOT-6 Plastic Package
PHEMT Process
IP3 52 dBm Typical
Low Insertion Loss (0.3 dB @ 0.9 GHz)
Low DC Power Consumption
Ultra Miniature Low Cost SOT-6 Plastic Package
PHEMT Process

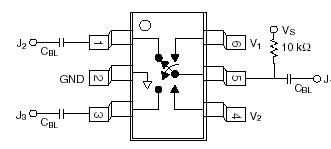

AS169-73 Connection Diagram
AS169-73
