Purchase AS176-59, In-stock AS176-59 From SeekIC.
MFG:ALPHA Package Cooled:TSOP
Part Number: AS176-59
MFG: ALPHA
Package Cooled: TSOP
Description: The AS176-59 is a GaAs FET IC SPDT switch packaged in a MSOP-8 plastic package for low cost, high...
- Table of contents:
AS176-59
-
Suppliers
DataSheet
General Description
AS176-59 General Description
The AS176-59 is a GaAs FET IC SPDT switch packaged in a MSOP-8 plastic package for low cost, high isolation commercial applications. Ideal building block for base station dual band applications where synthesizer isolation is critical. Use in conjunction with the AS165-59 SPST switch to meet GSM synthesizer isolation requirements.
AS176-59 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 1 W Max. > 500 MHz 0/+8 V Control |
| Supply Voltage | +8 V |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS176-59 Features
Positive Voltage Control (0/+3 to +5 V)
High Isolation (50 dB @ 0.9, 1.9 GHz)5
Low DC Power Consumption
Ideal for Cellular, GSM, DCS,PCS, 3G and 2.4 GHz ISM Applications
High Isolation (50 dB @ 0.9, 1.9 GHz)5
Low DC Power Consumption
Ideal for Cellular, GSM, DCS,PCS, 3G and 2.4 GHz ISM Applications

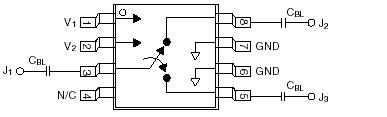

AS176-59 Connection Diagram
AS176-59
