Purchase AS183-92, In-stock AS183-92 From SeekIC.
Part Number: AS183-92
Description: The AS183-92 is an IC FET SPDT switch in a very small SC-70 6 lead plastic package.The AS183-92 features low insertion ...
- Table of contents:
AS183-92
-
Suppliers
DataSheet
General Description
AS183-92 General Description
The AS183-92 is an IC FET SPDT switch in a very small SC-70 6 lead plastic package.The AS183-92 features low insertion loss and positive voltage operation with very low DC power consumption.This switch is suitable for handset applications.
AS183-92 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 6 W > 500 MHz, 0/+7 V Control |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS183-92 Features
P1 dB +30 dBm Typical @ +3 V
IP3 43 dBm Typical @ +3 V
Low Insertion Loss (0.3 dB @ 0.9 GHz)
Low DC Power Consumption
Miniature SC-70 6 Lead Plastic Package
IP3 43 dBm Typical @ +3 V
Low Insertion Loss (0.3 dB @ 0.9 GHz)
Low DC Power Consumption
Miniature SC-70 6 Lead Plastic Package

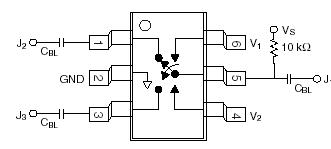

AS183-92 Connection Diagram
AS183-92
PDF/DataSheet Download
- Datasheet: AS183-92
- File Size: 39164 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
