Part Number: AS185-92
Description: The AS185-92 is a PHEMT GaAs FET IC high linearity SPDT switch...
- Table of contents:
AS185-92
-
Suppliers
DataSheet
General Description
AS185-92 General Description
The AS185-92 is a PHEMT GaAs FET IC high linearity SPDT switch in a SC-70 6 lead plastic package.This switch has been designed for use where extremely high linearity,low insertion loss and ultra miniature package size are required. It can be controlled with positive, negative or a combination of both voltages. Some standard implementations include antenna changeover, T/R and diversity switching over 2 W.The AS185-92 switch can be used in many analog and digital wireless communication systems including cellular, GSM and DECT applications.
AS185-92 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 10 W Max. > 900 MHz, 0/+7 V Control |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS185-92 Features
High Linearity (50 dBm IP3 @ 0.9 GHz)@ 3 V
Low Insertion Loss (0.35 dB @ 0.9 GHz)
+3 V Operation
Ultra Miniature SC-70 6 Lead Package
PHEMT Process
Low Insertion Loss (0.35 dB @ 0.9 GHz)
+3 V Operation
Ultra Miniature SC-70 6 Lead Package
PHEMT Process

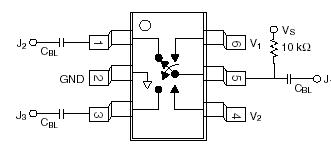

AS185-92 Connection Diagram
AS185-92
PDF/DataSheet Download
- Datasheet: AS185-92
- File Size: 40467 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
- ·AS1
- Optoelectronic
- 846620 KB
- ·AS1000
- Analog IC
- 412210 KB
- ·AS1001-7R
- POWER-ONE [Power-One]
- 100 Watt DC-DC Converters
- 150934 KB
- ·AS1001F-04
- SPEED CONTROLLER 4MM
- 541014 KB
- ·AS1001F-06
- SPEED CONTROLLER 6MM
- 541014 KB
- ·AS1004-1.2D
- Astec America, Inc
- Micropower Voltage Reference
- 64595 KB
- ·AS1004-1.2LP
- Astec America, Inc
- Micropower Voltage Reference
- 64595 KB
- ·AS1004-1.2S
- Astec America, Inc
- Micropower Voltage Reference
- 64595 KB
AS185-92 Relative Products
AS183-92LF
PHEMT GaAs IC SPDT Switch 300 KHz2.5 GHz The AS183-92 is an IC FET SPDT switch in a very small SC-70 6 lead plastic package.The AS183-92 features low insertion loss and positive voltage operation with very low DC power consumption.This switch is suitable fo...
AS183-92
The AS183-92 is an IC FET SPDT switch in a very small SC-70 6 lead plastic package.The AS183-92 features low insertion loss and positive voltage operation with very low DC power consumption.This switch is suitable for handset applications.
AS182-73
The AS182-73 is an IC FET SPDT switch in a low cost SOT-6 plastic package. The AS182-73 features low insertion loss and positive voltage operation with very low DC power consumption.This switch is suitable for handset applications.

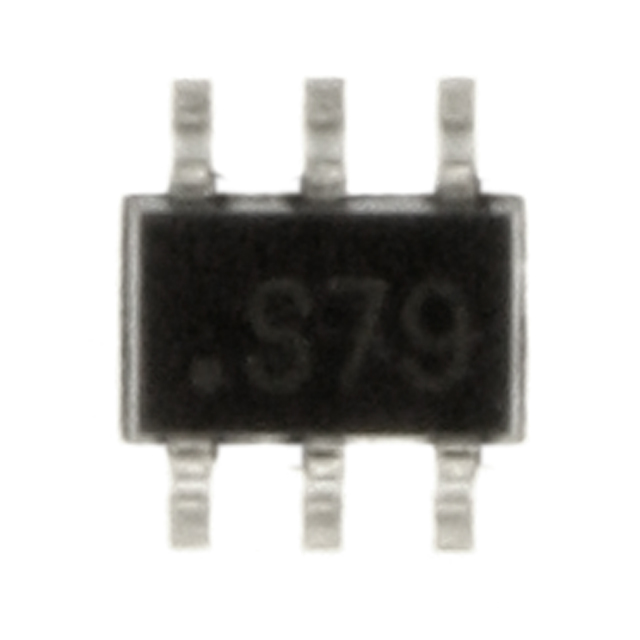

AS179-92LF
