Part Number: AS204-80



MFG: ALPHA

Package Cooled: SMD



Description: The AS204-80 is a high isolation SP4T FET IC non-reflective switch with driver.The insertion loss is 0.5 dB and isolati...


Urgent Purchase

AS204-80 General Description


The AS204-80 is a high isolation SP4T FET IC non-reflective switch with driver.The insertion loss is 0.5 dB and isolation is 45 dB at 0.9 GHz.The switch is ideal for cellular base station switch matrices.

AS204-80 Maximum Ratings

Characteristic Value
RF Input Power 0.8 W > 500 MHz
0.2 W @ 50 MHz
Supply Voltage +6 V
Control Voltage -0.2 V, +6 V
Operating Temperature -40°C to +85°C
Storage Temperature -65°C to +150°C
JC 25°C/W

AS204-80 Features

Integrated Driver +5 V Supply Voltage
High Isolation (45 dB @ 0.9 GHz)
Low Insertion Loss (0.5 dB @ 0.9 GHz)
SSOP-16 Plastic Package
Non-Reflective All Ports

AS204-80 Connection Diagram

AS204-80 Connection Diagram

AS204-80 datasheet

AS204-80
PDF/DataSheet Download

  • Datasheet: AS204-80
  • File Size: 506675 KB
  • Manufacturer: SKYWORKS [Skyworks Solutions Inc.]
  • Click here to Download

Find AS204-80 Suppliers

  • ·AS2000T
  • Triton
  •
  • 1078990 KB
  • AS2000T Datasheet Download
  • ·AS200-313
  • SKYWORKS [Skyworks Solutions Inc.]
  • PHEMT GaAs IC 2 W High Linearity 5-6 GHz T/R Switch
  • 48414 KB
  • AS200-313 Datasheet Download
  • ·AS2005
  • ETC [ETC]
  • 0.3 TO 2000 MHz TO-8 CASCADABLE AMPLIFIERS
  • 114762 KB
  • AS2005 Datasheet Download
  • ·AS2006
  • ETC [ETC]
  • 0.3 TO 2000 MHz TO-8 CASCADABLE AMPLIFIERS
  • 114762 KB
  • AS2006 Datasheet Download
  • ·AS202-000
  •
  • Tape and Reel for Discrete & IC Switch/Attenuators|DC-6 GHz Plastic Packaged and Chip|SPST
  • 133743 KB
  • AS202-000 Datasheet Download
  • ·AS202-321
  • ALPHA [Alpha Industries]
  • PHEMT GaAs IC High Power SP3T Switch DC-2 GHz
  • 85340 KB
  • AS202-321 Datasheet Download
  • ·AS205-322
  • ALPHA [Alpha Industries]
  • PHEMT GaAs IC High Linearity Positive Control SPDT Switch DC-2 GHz
  • 59589 KB
  • AS205-322 Datasheet Download
  • ·AS209-321
  • ALPHA [Alpha Industries]
  • GaAs IC Reflective SPDT DC-6 GHz
  • 189816 KB
  • AS209-321 Datasheet Download

Related Part Number

AS204-80 Relative Products

  • AS202-321LF

    AS202-321LF

    PHEMT GaAs IC High Power SP3T Switch DC2 GHz The AS202-321LF is a PHEMT GaAs IC SP3T antenna switch operating in the 900 MHz and 1800 MHz frequency bands. Switching between the antenna and TX/RX ports is accomplished with 3 control inputs. When the control ...

  • AS202-321

    AS202-321

    The AS202-321 is a PHEMT GaAs IC SP3T antenna switch operating in the 900 MHz and 1800 MHz frequency bands. Switching between the antenna and TX/RX ports is accomplished with 3 control inputs.When the control inputs of AS202-321 are driven with the appropria...

  • AS201901

    AS201901

    ACTUATOR MAGNET FLANGE MNT

  • AS201801

    AS201801

    ACTUATOR MAGNET MINI/FLANGE MNT

  • AS201701

    AS201701

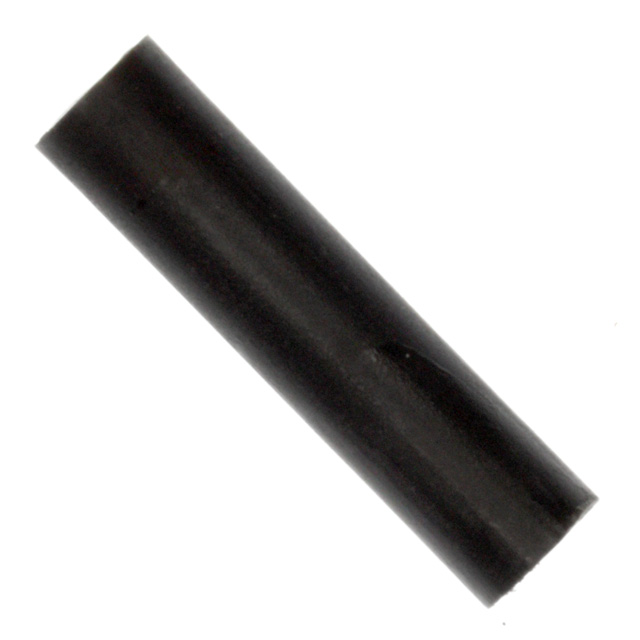

    ACTUATOR MAGNET SMOOTH

  • AS200-R

    AS200-R

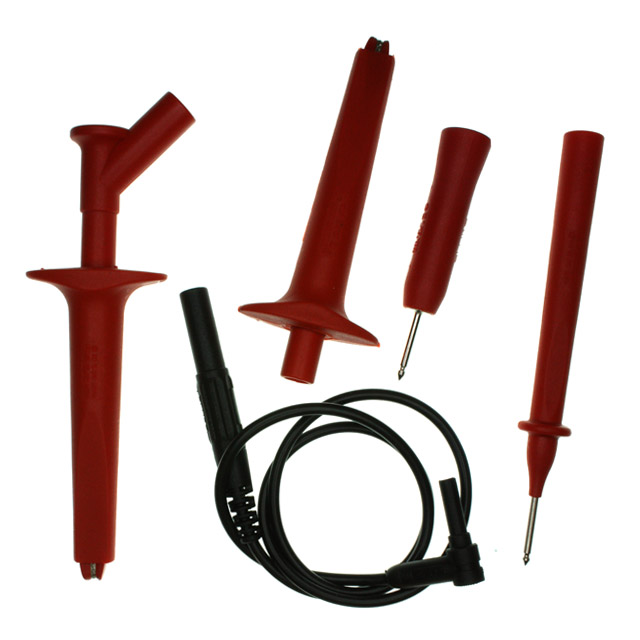

    PROBE ASSY SET RED VP PROBES
