MFG:NKK Switches of America Inc Category:Switches
Category: Switches
MFG: NKK Switches of America Inc

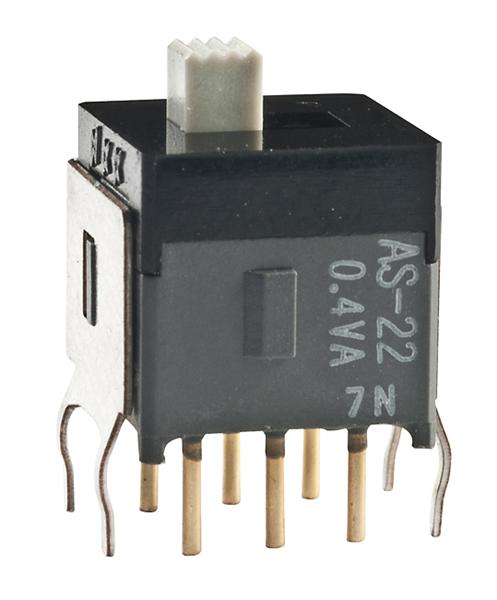

Descriptions: SW SLIDE DPDT .098" PCB
1
6.83000
6.83
| Technical/Catalog Information | AS22AB-RO |
| Vendor | NKK Switches of America Inc |
| Category | Switches |
| Mounting Type | Through Hole |
| Circuit | DPDT |
| Switch Function | On-On |
| Contact Rating @ Voltage | 0.4VA @ 28VAC/DC |
| Termination Style | PC Pin |
| Orientation | Vertical |
| Actuator Type | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AS22AB RO AS22ABRO |
AS2000T
PDF/DataSheet Download
SW SLIDE DPDT .098" PCB
