Purchase AS29F200, In-stock AS29F200 From SeekIC.
- Table of contents:
AS29F200
-
Suppliers
DataSheet
General Description
AS29F200 Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Input voltage (Input or DQ pin) |
VIN |
2.0 |
+7.0 |
V |
|
Input Voltage (A9 pin, OE, RESET) |
VIN |
2.0 |
+13.0 |
V |
|
Power supply voltage |
VCC |
-0.5 |
+5.5 |
V |
|
Operating temperature |
TOPR |
55 |
+125 |
|
|
Storage temperature (Plastic) |
TSTG |
65 |
+150 |
|
|
Short circuit output current |
IOUT |
- |
200 |
mA |
AS29F200 Features
• Organization: 256K*8 or 128K*16
• Sector architecture
- One 16K; two 8K; one 32K; and three 64K byte sectors
- Boot code sector architecture-T (top) or B (bottom)
- Erase any combination of sectors or full chip
• Sector architecture
- One 16K; two 8K; one 32K; and three 64K byte sectors
- Boot code sector architecture-T (top) or B (bottom)
- Erase any combination of sectors or full chip

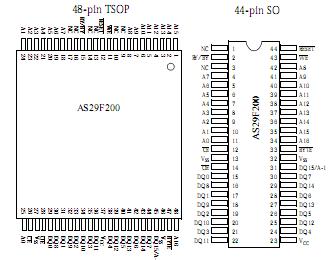

AS29F200 Connection Diagram
AS29F200
PDF/DataSheet Download
- Datasheet: AS29F200
- File Size: 385019 KB
- Manufacturer: ALSC [Alliance Semiconductor Corporation]
- Click here to Download
