AS4C1M16F5
-
Suppliers
DataSheet
General Description
AS4C1M16F5 Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Input voltage | Vin | -1.0 | +7.0 | V |
| Input voltage (DQs) | VDQ | -1.0 | VCC + 0.5 | V |
| Power supply voltage | VCC | -1.0 | +7.0 | V |
| Storage temperature (plastic) | TSTG | -55 | +150 | °C |
| Soldering temperature * time | TSOLDER | 260 * 10 | °C * sec | |
| Power dissipation | PD | 1 | W | |
| Short circuit output current | Iout | 50 | mA |
AS4C1M16F5 Features
• Organization: 1,048,576 words × 16 bits
• High speed
- 50/60 ns RAS access time
- 20/25 ns fast page cycle time
- 13/17 ns CAS access time
• Low power consumption
- Active: 880 mW max (AS4C1M16E0-60)
- Standby: 11 mW max, CMOS DQ
• Fast page mode
• 1024 refresh cycles, 16 ms refresh interval
- RAS-only or CAS-before-RAS refresh
• Read-modify-write
• TTL-compatible, three-state DQ
• JEDEC standard package and pinout
- 400 mil, 42-pin SOJ
- 400 mil, 44/50-pin TSOP II
• 5V power supply
• Industrial and commercial temperature available
• High speed
- 50/60 ns RAS access time
- 20/25 ns fast page cycle time
- 13/17 ns CAS access time
• Low power consumption
- Active: 880 mW max (AS4C1M16E0-60)
- Standby: 11 mW max, CMOS DQ
• Fast page mode
• 1024 refresh cycles, 16 ms refresh interval
- RAS-only or CAS-before-RAS refresh
• Read-modify-write
• TTL-compatible, three-state DQ
• JEDEC standard package and pinout
- 400 mil, 42-pin SOJ
- 400 mil, 44/50-pin TSOP II
• 5V power supply
• Industrial and commercial temperature available

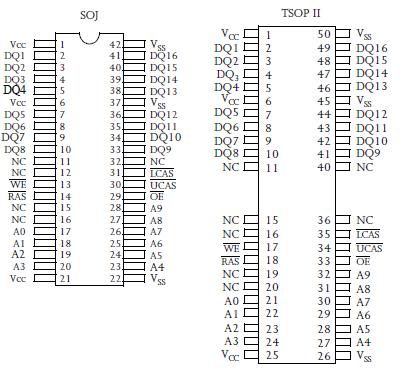

AS4C1M16F5 Connection Diagram
AS4C1M16F5
PDF/DataSheet Download
- Datasheet: AS4C1M16F5
- File Size: 496936 KB
- Manufacturer: ETC [ETC]
- Click here to Download
