Part Number: AS5C1008DJ-15_IT
Description: The ASI AS5C1008 is a high speed, low power, 128K by 8-bit ruggedized plastic (COTS) CMOS Static RAM. It is fabricat...
- Table of contents:
AS5C1008DJ-15_IT
-
Suppliers
DataSheet
General Description
AS5C1008DJ-15_IT General Description
The ASI AS5C1008 is a high speed, low power, 128K by 8-bit ruggedized plastic (COTS) CMOS Static RAM. It is fabricated using high performance, CMOS technology. This highly reliable process coupled with innovative circuit design techniques,yields access times as fast as 15ns (Max) over the military and industrial temperature ranges.
When Chip Enable (CE\) is HIGH, the device assumes a standby mode at which the power dissipation can be reduced down to 125mW (max) at CMOS input levels.
Easy memory expansion is provided by using asserted LOW CE\ and asserted HIGH CE2, and asserted LOW write enable (WE\) controls both writing and reading of the memory.
TheAS5C1008 is pin-compatible with other 128K x 8 SRAM's in the SOJ package.
AS5C1008DJ-15_IT Maximum Ratings
Vcc Supply Relative to GND..........................................-0.5V to +7.0V
Voltage on any pin Relative to GND.......................-0.5V to Vcc +7.0V
Storage Temperature ..........................................-65°C to +150°C
Ambient Temperature with Power Applied...........-55°C to +125 °C
Short Circuit Output Current..................................................260 °C
Power Dissipation......................................................................1.0W
AS5C1008DJ-15_IT Features
· Access times of 15, 20 and 25 ns
· Fast output enable (tAOE ) for cache applications
· Low active power
· Low standby power
· Fully static operation, no clock or refresh required
· TTL Compatible Inputs and Outputs
· Single +5V power supply
· Package in Industry-standard 32-pin SOJ
· Fast output enable (tAOE ) for cache applications
· Low active power
· Low standby power
· Fully static operation, no clock or refresh required
· TTL Compatible Inputs and Outputs
· Single +5V power supply
· Package in Industry-standard 32-pin SOJ

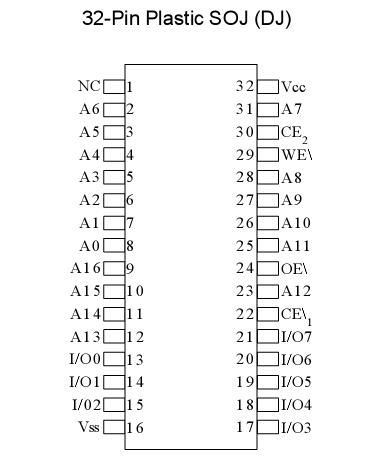

AS5C1008DJ-15_IT Connection Diagram
AS5C1008DJ-15/IT
