Part Number: AS5LC1008
Description: The ASI AS5LC1008 is a very high-speed, low power, 131,072-word by 8-bit CMOS static RAM in revolution...
- Table of contents:
AS5LC1008
-
Suppliers
DataSheet
General Description
AS5LC1008 General Description
The ASI AS5LC1008 is a very high-speed, low power, 131,072-word by 8-bit CMOS static RAM in revolutionary pinout. The AS5LC1008 is fabricated using high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.
When CE\ is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 250W (typical) with CMOS input levels.
The AS5LC1008 operates from a single 3.3V power supply and all inputs are TTL-compatible.
AS5LC1008 Maximum Ratings
Terminal Voltage with Respect to GND (VTERM).............................................-0.5V to VCC + 0.5V
Temperature Under Bias (TBIAS)....................................................................-55°C to +125°C
Storage Temperature (TSTG).................................................................... ....-65°C to +150°C
Power Dissipation (PT)........................................................................................................1.0W
Temperature Under Bias (TBIAS)....................................................................-55°C to +125°C
Storage Temperature (TSTG).................................................................... ....-65°C to +150°C
Power Dissipation (PT)........................................................................................................1.0W
AS5LC1008 Features
• High-speed access times of 10, 12, 15 and 20 ns
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE\ and OE\ options
• CE\ power-down
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 3.3V power supply
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE\ and OE\ options
• CE\ power-down
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 3.3V power supply

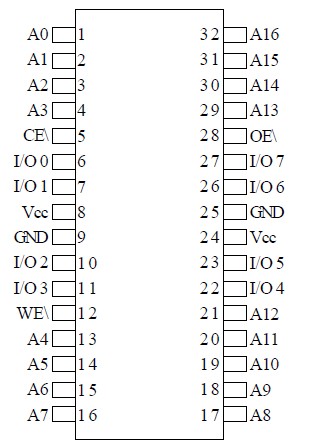

AS5LC1008 Connection Diagram
AS5LC1008DJ-10/IT
