Part Number: AS78LXX
Description: The AS78LXX series are three terminal positive regulators designed for a wide variety of applications ...
- Table of contents:
AS78LXX
-
Suppliers
DataSheet
General Description
AS78LXX General Description
The AS78LXX series are three terminal positive regulators designed for a wide variety of applications including local, on-card regulation.
This series of regulators are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output currents up to 100mA.
The AS78LXX series are available in TO-92 (bulk or ammo packing) and SOT-89-3 packages.
AS78LXX Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Input Voltage | VIN | 36 | V | |
| Operating Junction Temperature | TJ | 150 | °C | |
| Lead Temperature (Soldering, 10sec) | TLEAD | 260 | °C | |
| Power Dissipation | PD | 750 | mW | |
| Storage Temperature Range | TSTG | -65 to 150 | °C | |
| Thermal Resistance | JA | TO-92 | 180 | °C/W |
| ESD (Human Body Model) | ESD | 2000 | V | |
| ESD (Machine Model) | ESD | 200 | V | |
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.
AS78LXX Features
· Output Current up to 100mA
· Fixed Output Voltages of 5V, 12V, 15V, 18V and 24V
· Output Voltage Accuracy of ±5% over the Full Temperature Range
· Internal Short Circuit Current Limiting
· Internal Thermal Overload Protection
· No External Components
· Output Transistor Safe-area Protection
· Fixed Output Voltages of 5V, 12V, 15V, 18V and 24V
· Output Voltage Accuracy of ±5% over the Full Temperature Range
· Internal Short Circuit Current Limiting
· Internal Thermal Overload Protection
· No External Components
· Output Transistor Safe-area Protection
AS78LXX Typical Application
· Consumer Electronics
· Microprocessor Power Supply
· Mother Board
· Microprocessor Power Supply
· Mother Board

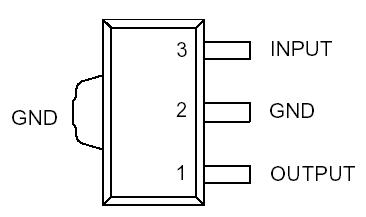

AS78LXX Connection Diagram
