General Description
AS78XX General Description
The AS78XX series are three terminal positive regulators designed for a wide variety of applications including local, on-card regulation.
The AS78XX are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking are provided, these regulators can deliver output currents up to 1A.
The AS78XX are available in TO-220-3 and TO-252-2 (1) packages.
AS78XX Maximum Ratings
| Parameter | Symbol | Value | Unit | |
| Input Voltage | VIN | 36 | V | |
| Lead Temperature (Soldering, 10sec) | TLEAD | 200 | oC | |
| Power Dissipation | PD | Internally Limited | W | |
| Operating Junction Temperature | TJ | 150 | °C | |
| Storage Temperature Range | TSTG | -65 to 150 | °C | |
| Thermal Resistance | JA | TO-220-3 | 60 | °C/W |
| TO-252-2 (1) | 100 | |||
| ESD (Human Body Model) | ESD | 3000 | V | |
| ESD (Machine Model) | ESD | 400 | V | |
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.
AS78XX Features
· Output Current up to 1A
· Fixed Output Voltages of 5V, 8V, 9V, 12V and 15V
· Output Voltage Accuracy of ±4% over the Full Temperature Range
· Internal Short Circuit Current Limiting
· Internal Thermal Overload Protection
· Output Transistor Safe-area Protection
· Fixed Output Voltages of 5V, 8V, 9V, 12V and 15V
· Output Voltage Accuracy of ±4% over the Full Temperature Range
· Internal Short Circuit Current Limiting
· Internal Thermal Overload Protection
· Output Transistor Safe-area Protection
AS78XX Typical Application
· High Efficiency Linear Regulator
· Post Regulation for Switching Supply
· Microprocessor Power Supply
· Mother Board
· Post Regulation for Switching Supply
· Microprocessor Power Supply
· Mother Board

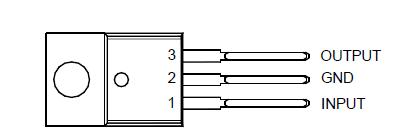

AS78XX Connection Diagram
