General Description
AS8202 General Description
The AS8202 communications controller is an integrated device supporting serial communication according to the TTP/C specification. It performs all communications tasks such as reception and transmission of messages in a TTP® cluster without interaction of the host CPU.
TTP® provides mechanisms that allow the deployment in high-dependability distributed real-time systems. It provides following services:
predictable transmission of messages with minimal jitter
fault-tolerant distributed clock synchronisation
consistent membership service with small delay
masking of single faults
The CNI (communication network interface) forms a temporal firewall. It decouples the controller network from the host subsystem by use of a dual ported RAM. This prevents the propagation of control errors. The interface to the host CPU is implemented as 16 bit wide non-multiplexed asynchronous bus interface.
TTP/C follows a conflict-free media access strategy called time-division-multiple access (TDMA). This means, TTP/C deploys a time slot technique based on a global time which is
permanently synchronised. Each node is assigned a time slot in which it is allowed to perform transmit operation. The sequence of time slots is called TDMA round, a set of TDMA rounds
forms a cluster cycle. After one cluster cycle the operation of the network repeats.
The sequence of interactions forming the cluster cycle is defined in a static time schedule, called message-descriptor-list (MEDL). The definition of the MEDL in conjunction with the global time determines the response time for a service request. The membership of all nodes in the network is evaluated by the communication controller. This information is presented in a consistent fashion to all correct cluster members. During operation, the status of every other node is propagated within one TDMA round. The MEDL is loaded into the configuration memory when the system starts up.
AS8202 Maximum Ratings
| SYMBOL | PARAMETER | MIN | MAX | NOTE |
| VDD | DC Supply Voltage | - 0.3 V | 5.0 V | |
| VIN | Input Voltage on any Pin | - 0.3 V | VDD + 0.3 V | |
| IIN | Input Current on any Pin | -100 mA | 100 mA | 25°C |
| Tstrg | Storage Temperature | -55 |
150 | |
| Tsold | Soldering Temperature | 260 |
1) | |
| tsold | Soldering Time | 10 sec | Reflow and Wave | |
| H | Humidity | 5 % | 85 % | |
| ESD | Electrostatic Discharge | 1000 V | HBM: R = 1.5 k, C = 100 pF |
AS8202 Features
Dedicated controller supporting TTP/C (time triggered protocol class C)
Suited for dependable distributed real-time systems with guaranteed response time
Application fields: Automotive (by-wire braking, steering, vehicle dynamics control, drive train control), Aerospace (aircraft electronic systems), Industrial systems, Railway systems
TTP/C asynchronous data rate up to 5 MBit/s @ clock 40 MHz, synchronous data rate 25 MBit/s @ clock 40 MHz
Single power supply 3.3V
0.35m CMOS process
Temperature range: -40°C to 125° C
2k x 16 RAM message, status and control area (communication network interface)
16 Bit non-multiplexed host CPU interface
16 Bit RISC architecture
16k x 16 internal FLASH memory for firmware and scheduling information
software tools, design-in support, development boards available ( http://www.tttech.com)
80 pin TQFP Package
Suited for dependable distributed real-time systems with guaranteed response time
Application fields: Automotive (by-wire braking, steering, vehicle dynamics control, drive train control), Aerospace (aircraft electronic systems), Industrial systems, Railway systems
TTP/C asynchronous data rate up to 5 MBit/s @ clock 40 MHz, synchronous data rate 25 MBit/s @ clock 40 MHz
Single power supply 3.3V
0.35m CMOS process
Temperature range: -40°C to 125° C
2k x 16 RAM message, status and control area (communication network interface)
16 Bit non-multiplexed host CPU interface
16 Bit RISC architecture
16k x 16 internal FLASH memory for firmware and scheduling information
software tools, design-in support, development boards available ( http://www.tttech.com)
80 pin TQFP Package

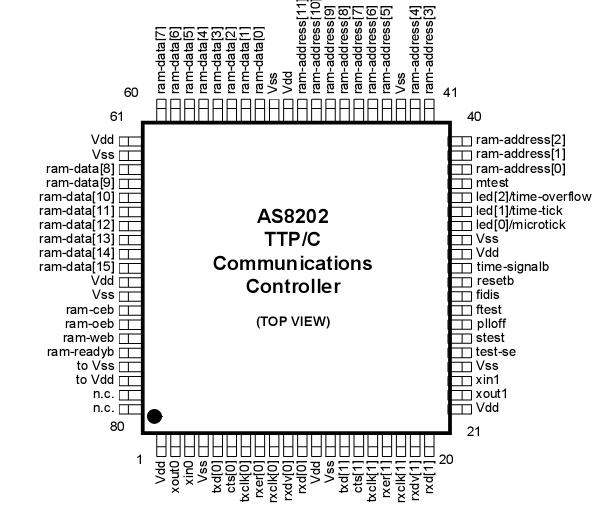

AS8202 Connection Diagram
AS8202
