AS8201

First dedicated controller supporting TTP/C (time triggered protocol class C)
Device for building up TTP/C nodes in a TTP/C local area networks (clusters).
Suited for dependable distributed real-time systems with guaranteed response time application examples:
automotive: braking, steering, vehicle dynamics control, drive train control
industry: air plane flap control, rail way points
Bit data rate 2 Mbits/s @ clock 20 MHz, 5.0V
Fabricated in 0.6u CMOS process, automotive temperature range of -40 to 125deg C
1k x 16 RAM message, status and control area
RAM for instruction code and configuration data
16 bit non-multiplexed host CPU interface
16 bit RISC architecture
external firmware (FLASH memory) conforming the TTP/C specification
automatic booting after power on
software tools, design-in support, development boards available ( http://www.tttech.com)

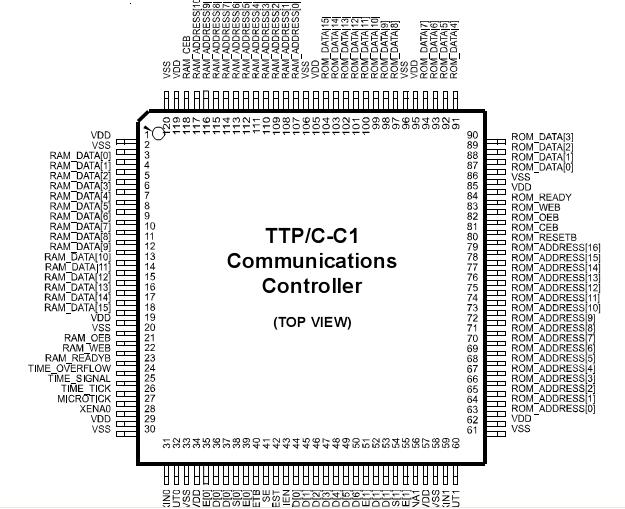

120 pin PQFP Package

The TTP/C-C1 communications controller AS8201 is the first integrated device supporting serial communication according to the TTP/C specification (time triggered protocol class C). AS8201 performs all communications tasks such as reception and transmission of messages in a TTP/C cluster  without interaction of the host CPU.

TTP/C provides mechanisms that allow the deployment in high-dependability distributed real-time systems. AS8201 provides the following services:
predictable transmission of messages with minimal jitter
fault-tolerant distributed clock synchronisation
consistent membership service with small delay
masking of single faults
